New Principle of Helicopter Operations Invented in Belgium

New Principle of Helicopter Operations Invented in Belgium

Sagita is a Belgian startup company which invented a helicopter with unique propulsion system. The company states that this system makes the aircraft nearly 85% efficient and the helicopter doesn’t need a tail rotor.

The propulsion system mentioned above consists of a motor that power a compressor with an air intake at the rear side, instead of direct propelling of the rotor. The compressor then forwards some of its air to support engine combustion, while the rest takes the heat from the cooling system, after which it is mixed with exhausted engine fumes. The compressed air with temperature of 100º C (212º F) drives two turbines each propelling one of the two rotors.

4[Image Source: Sagita]

Sagita claims that no additional cooling measures are required, and that because fewer moving parts are needed overall, maintenance is reduced.

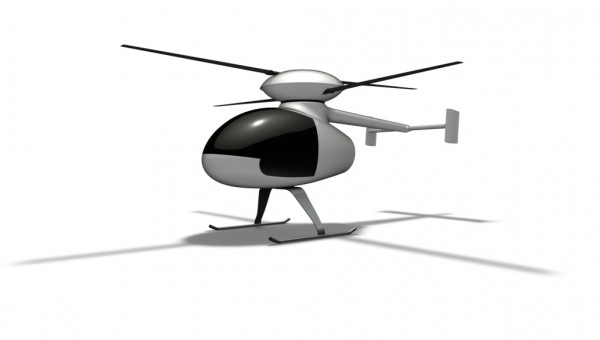

The fuselage has the shape of a bullet due to the air intake at the rear end. The cockpit is nearly 1.45 m (4.8 ft) wide and 1.26 m (4.1 ft) high. Without the rotors, the overall length is below 4.8 m (15.8 ft). About the performance, Sagita stated that 260 kg (573 lb) will be able to take off with additional 171 kg (377 lb) of load, which means total weight of 431 kg (950 lb). Its range is supposed to be 400 km (250 miles) with cruise speed of 158 km/h. The expected maximum time of flight is 5 hours and it will reach altitude of up to 2000 m.

sherpa_0[Image Source: Sagita]

We must consider that this is theoretical data because tests were held only with small scale models. The company hopes that the helicopter will make first flight in 2015 and sales will start one year later. Its target price is €150,000 (US$200,000).
Sagita claims to have proven the concept which used an electric motor with a 1:5 scale model.

Hubert Antoine, a director of Sagita, suggested that the technology could be used on much larger helicopters and that Sherpa has the potential to be a UAV platform.
