You can build a basic wire stripping machine, too

Here's the way to it.

If the video player is not working, you can watch the video from this alternative link.
Never strip your wires by hand ever again with this handy machine. The machine works great and is relatively easy to make.

Here's how.

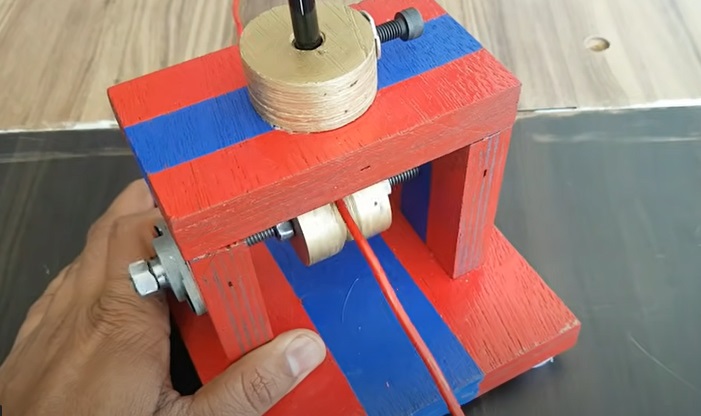

diy wire stripper machine complete
Source: Junkyard -  Origin of Creativity/YouTube

As you can imagine, you'll need some tools and materials before you get started.

Materials and gear needed

Step 1: Prepare the wooden components

The first step is to take your wood and cut out a series of squares 1  no. 5 and 29/32 inches square (15cm by 15 cm), 2 no. 3 and 5/32 inches (8cm) by 2 and 3/4 inches (7 cm), 1 no. 4 and 23/32 inches (12 cm) by  2 and 3/4 inches (7 cm).

With the pieces of wood prepared, transfer them to your bench drill and drill some holes through the middle of the 5/32 inches (8cm) by 2 and 3/4 inches (7 cm) pieces.

diy wire stripper machine wood
Source: Junkyard -  Origin of Creativity/YouTube

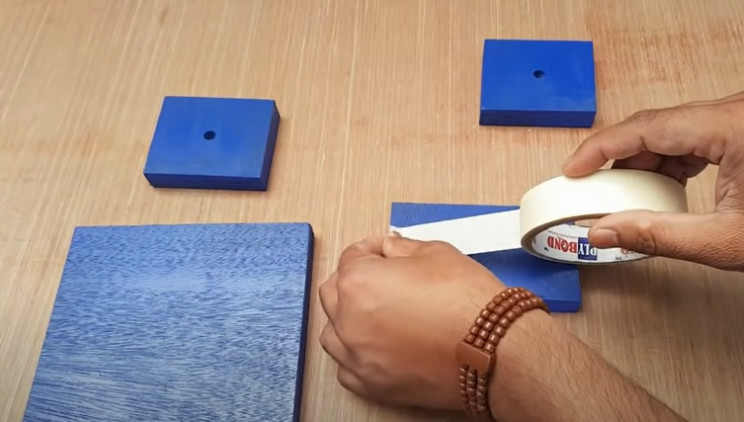

With that done, clean up the drill holes, and paint the pieces blue, or whatever color you'd prefer. Once the paint is dry, add a strip of masking tape down the center of each piece and spray the rest of the timber a different color, like red.

Advertisement

Once again, leave the paint to dry fully.

With that done, core a disc of wood and sand down as needed as shown in the video. Bevel off the sharp edges of the disk too to make a sort of wheel. Rinse and repeat to make a second wheel and then paint them as needed.

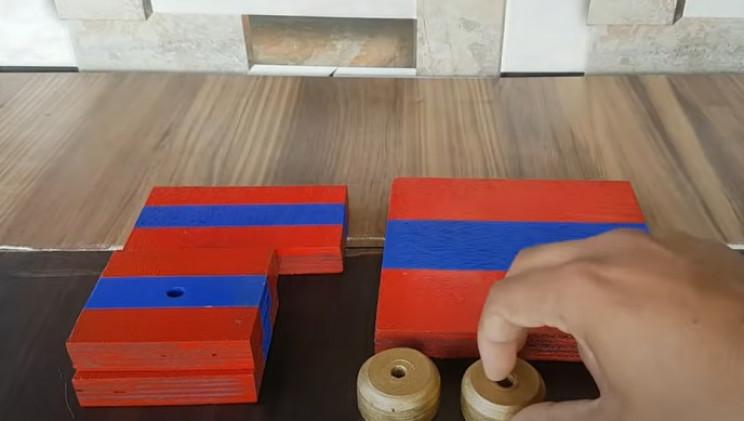

diy wire stripper wooden pieces
Source: Junkyard -  Origin of Creativity/YouTube

Next, remove the masking tape from the other wooden pieces.

Step 2:  Begin to assemble the machine

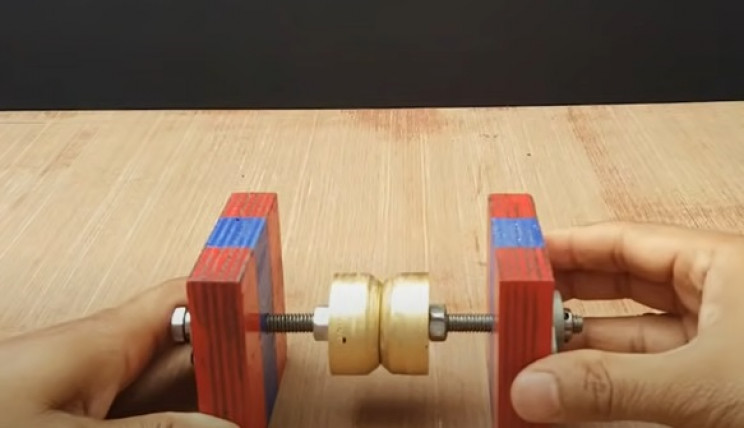

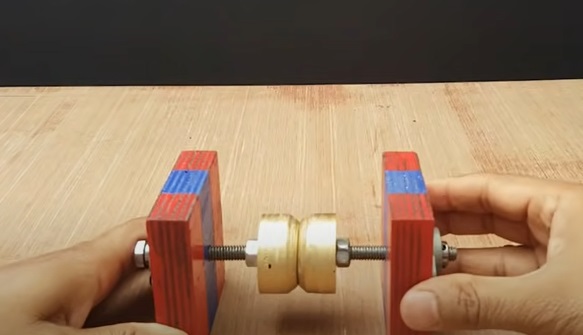

Next, take one of the 3 and 5/32 inches (8cm) by 2 and 3/4 inches (7 cm) and screw into place a pillow bearing. With that done, take your threaded rod and place it through the eye of the pillow bearing, add a nut to the rod and then attach the wooden wheels to the rod.

diy wire stripper roller
Source: Junkyard -  Origin of Creativity/YouTube

Add the other pillow bearing to the other 3 and 5/32 inches (8cm) by 2 and 3/4 inches (7 cm) piece of wood and insert the other end of the rod as shown.

Advertisement

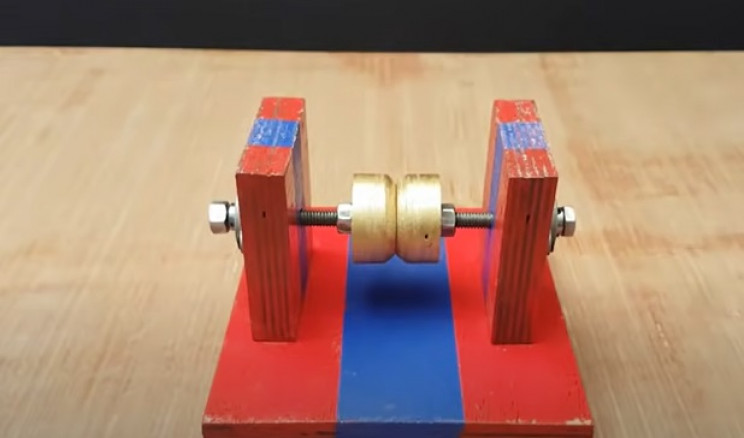

With that done, take the main 5 and 29/32 inches square (15cm by 15 cm) piece and attach a plastic foot to each corner of one side. Next, mount the main roller assembly to the other side of the wood.

diy wire stripper roller on base
Source: Junkyard -  Origin of Creativity/YouTube

Next, take the last piece of painted wood and drill another hole through its center. Clean up the hole, and then glue and screw the piece above the main roller.

Step 3: Complete the machine

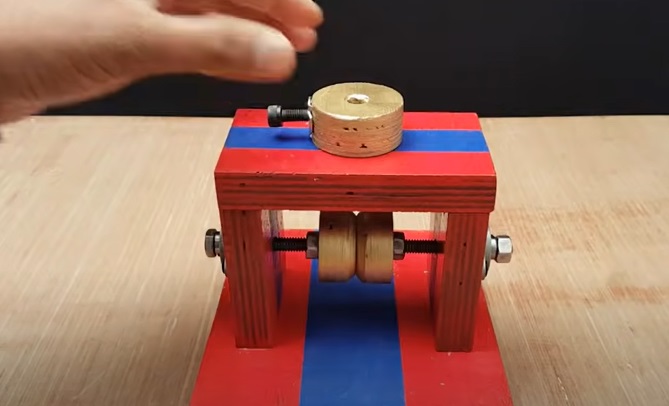

With that done, take another wooden disk and mount it in your vice. Drill a hole directly across one radius. Insert a nut a bolt into the hole and glue the piece on top of the top "lintel" of the machine.

diy wire stripping machine lintel
Source: Junkyard -  Origin of Creativity/YouTube

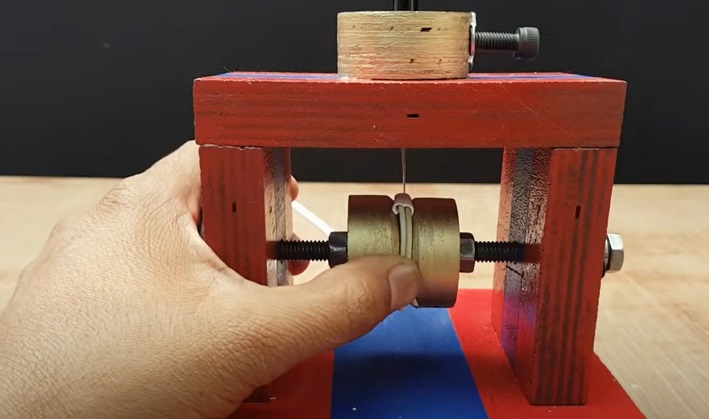

With that done, mount your bore diameter mounting ball bearing directly in front of the main roller on the base. Next, take your modeling knife, remove the protective cover, and mount it above the main roller using the top mounting.

Advertisement
diy wire stripping machine knife
Source: Junkyard -  Origin of Creativity/YouTube

This will allow the knife to be adjusted vertically for different thicknesses of wire.

With that done, your DIY wire stripping machine is now ready to use. To operate it, place your length of wire in the niche of the roller and adjust the blade to suit.

With that done, pull the wire from the other end of the machine using either your hand or a pair of pliers. The wire should now be able to be pulled through the machine, cutting the insulation sheathing as it goes!

Happy days.

If you enjoyed this project, you might enjoy making another handy tool? How about, for example, your own steam-powered generator
