Here Is How to Make Your Own Arduino-Powered Robotic Spider

Build your very own Arduino-powered robotic spider play thing!

Do you want to build your own Arduino-powered 4-legged "Spider"? Then you have come to the right place.

Like most projects of this nature, you'll need a few basic tools (listed below) and some other bits and bobs to get the job done.

We have included links to some of the products in case you need to buy them:

Main components:

Other gear needed:

With everything in hand, it is time to get on with the build.

The first step is to print all the required 3D-printed parts. You can find the parts models here. The creator used an Anet ET4 3D printer but you can use any 3D printer capable of printing them.

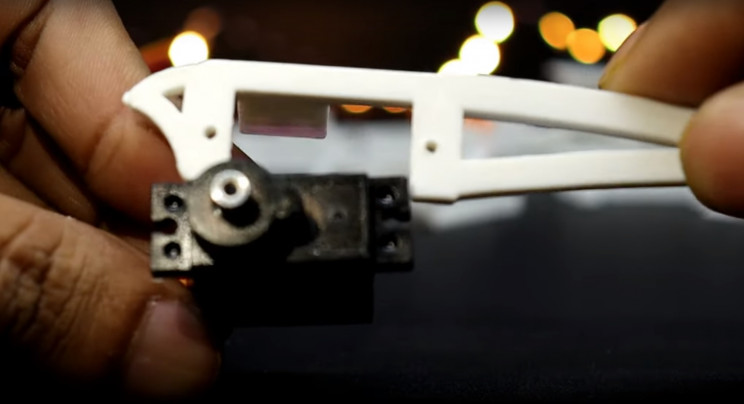

The main legs (4 in total) are designed to hold SG90 servos. Attached them as instructed in the tutorial video. You will need to screw them into place with appropriately sized screws.

arduino spider legs
Attached MG90 servos to 3D printed leg segments, Source: Interesting Engineering

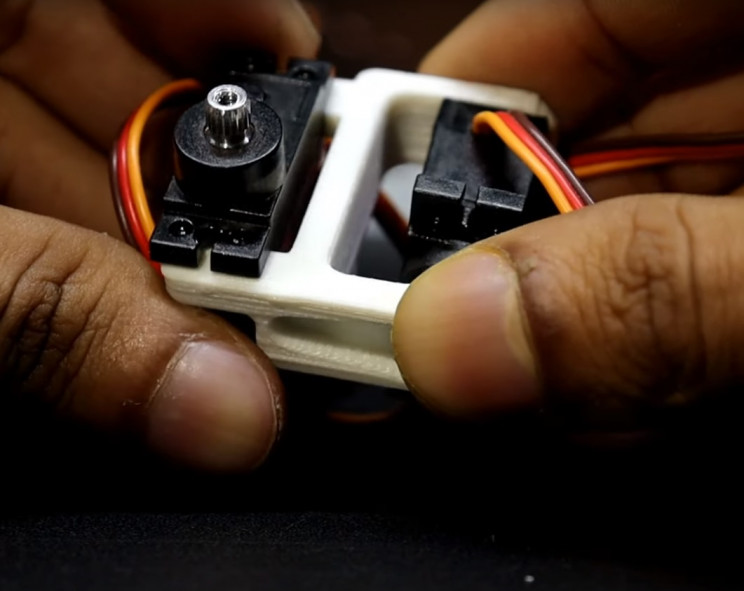

Next, you will also need to attach the same servos to the leg joints. See the video for more details on this step.

arduino spider joints
Attached MG90 servos to 3D printed leg joint segments, Source: Interesting Engineering

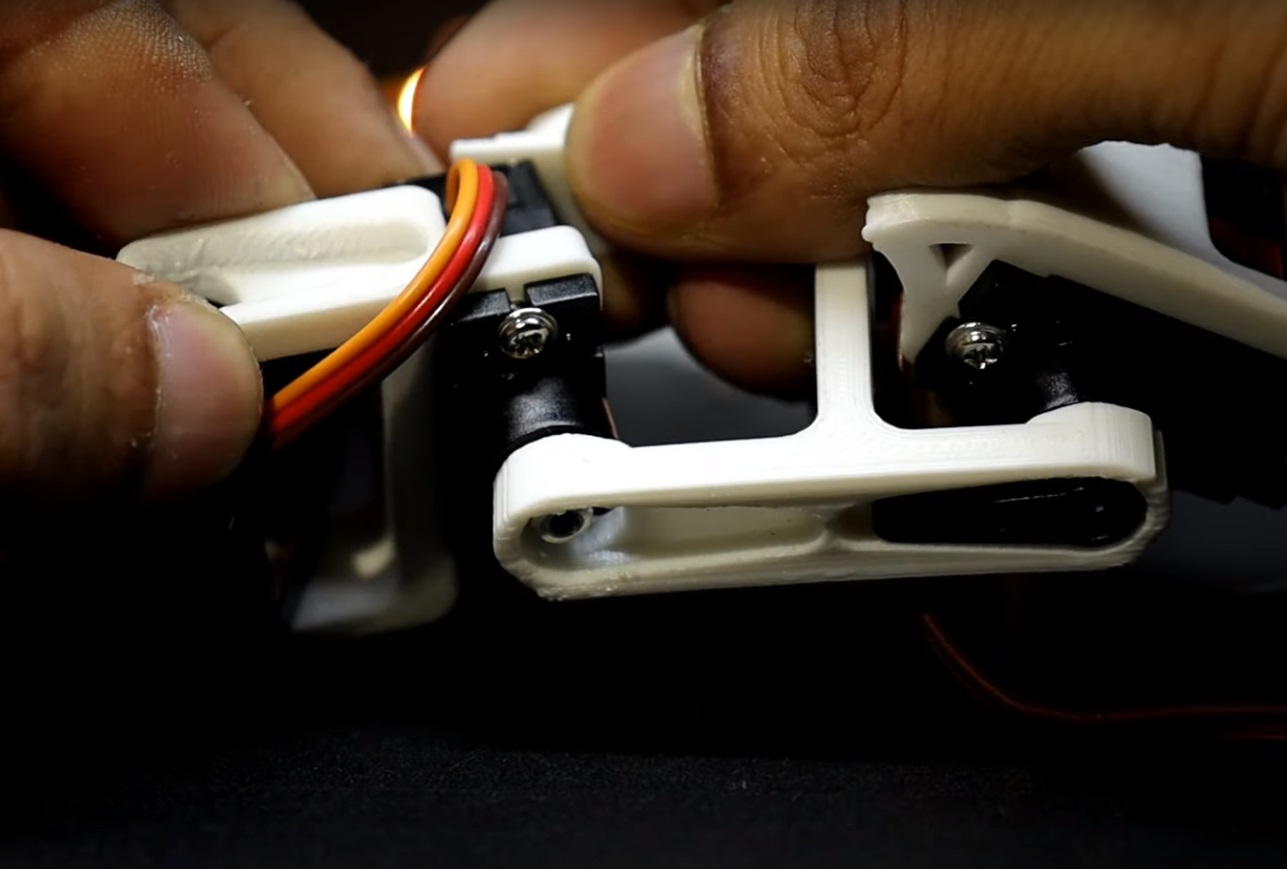

Next, attach the leg segments to the leg hinge 3D parts and attach that entire assembly to the previously constructed joint assemblies.

arduino spider arduino legs and joints
Attach legs to joints, Source: Interesting Engineering

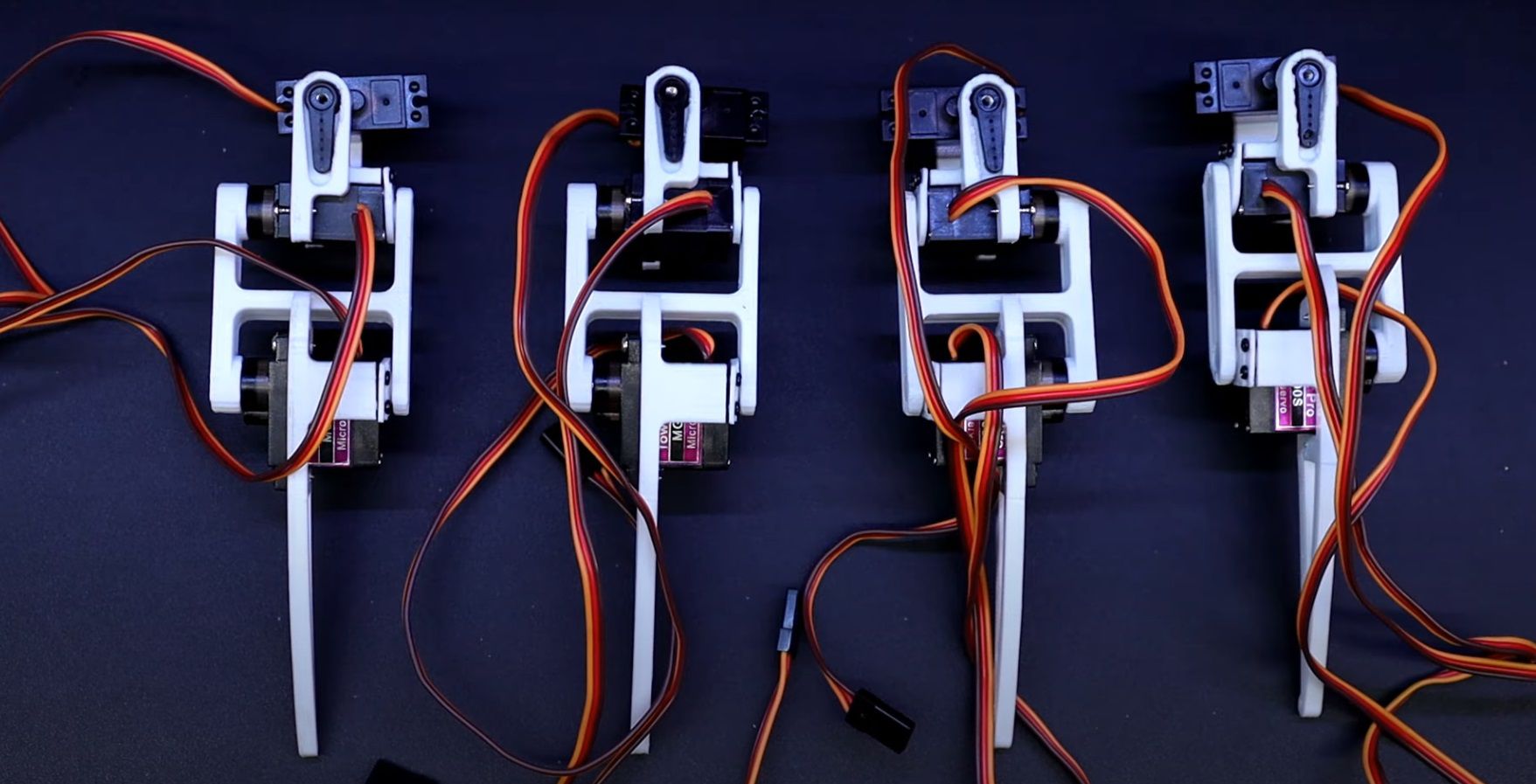

Complete for all four legs.

arduino spider all legs
Source: Interesting Engineering

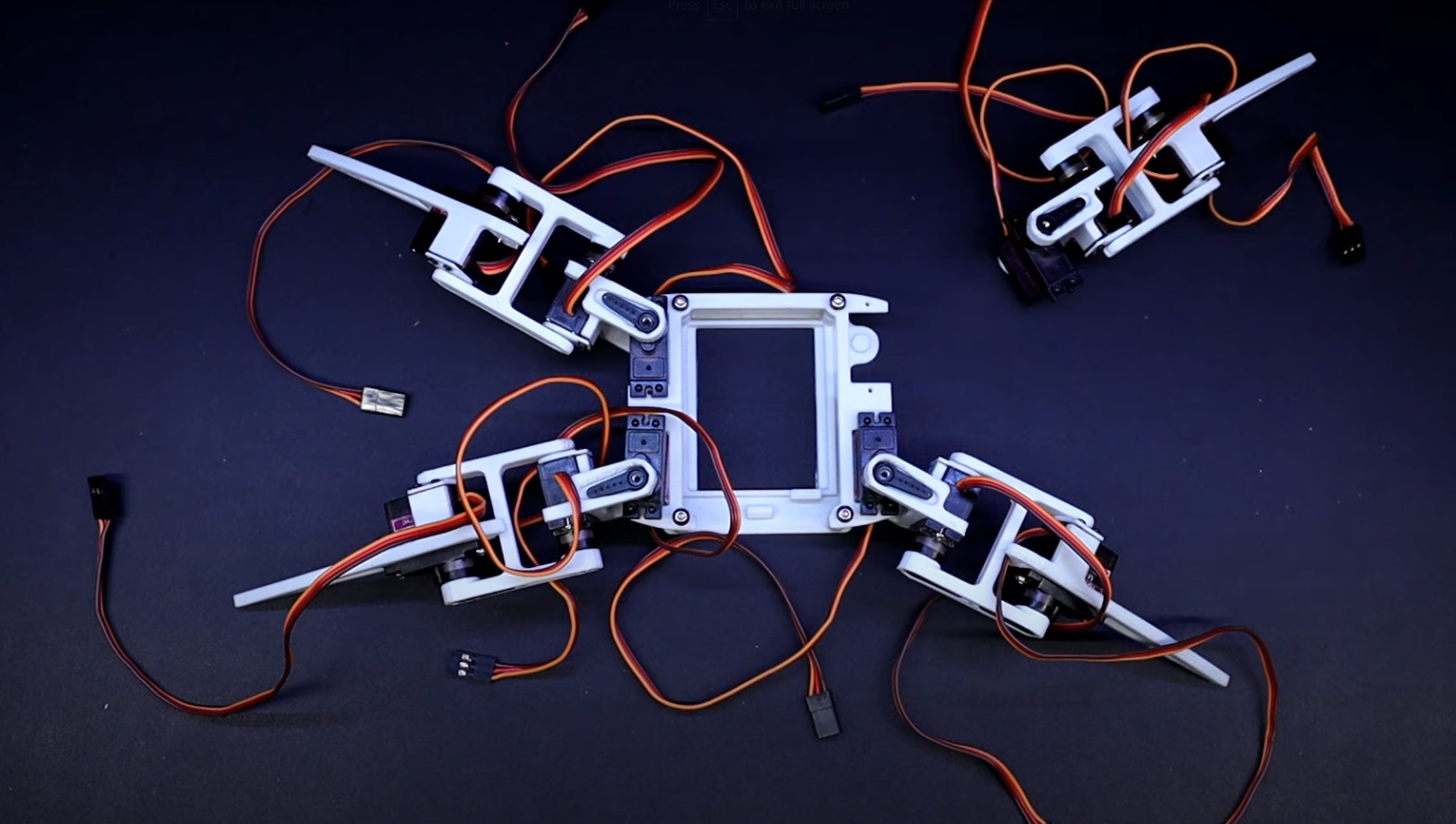

Now attach the four completed leg and joint assemblies to the main body. The central void will house the completed PCB board and components later.

arduino spider legs to body
Attach the legs to the main body, Source: Interesting Engineering

The next step is to design and have produced a custom PCB board. You can see all the relevant diagrams and files from the full instruction guide here

Please note that this video is the current iteration of this robot so some details, like the PCB board design, could have changed.

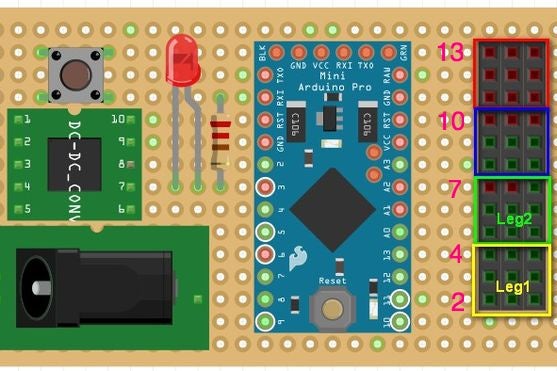

arduino robot spider elecs circuit board
Custom PCB diagram/schematics note this may not match the one in the video (for example the power jack is not required), Source: Interesting Engineering

You can get this printed for as little as $2, however, it will be shipped from China so delivery times may be substantial. With this in hand, place all the required components in their appropriate slots and solder, as shown on the schematics above.

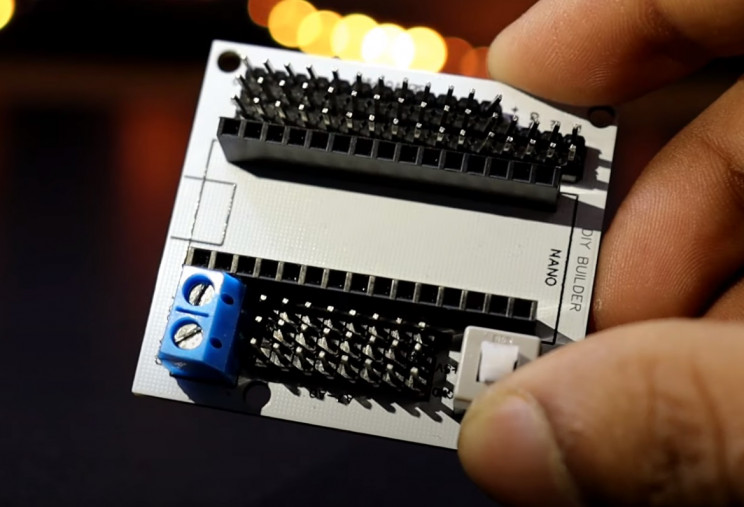

arduino spider pcb without components
Custom PCB, Source: Interesting Engineering

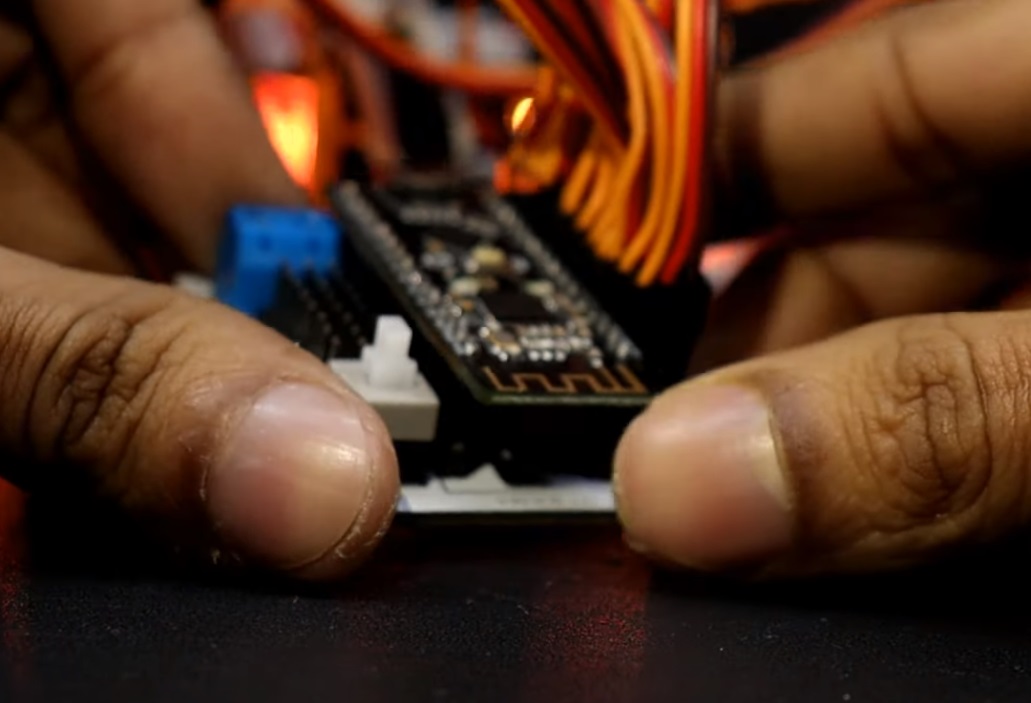

Next, attach the Arduino Nano and attach the servos to their relevant slots on the PCB.

arduino spider circuits
Attach PCB and servo wiring, Source: Interesting Engineering

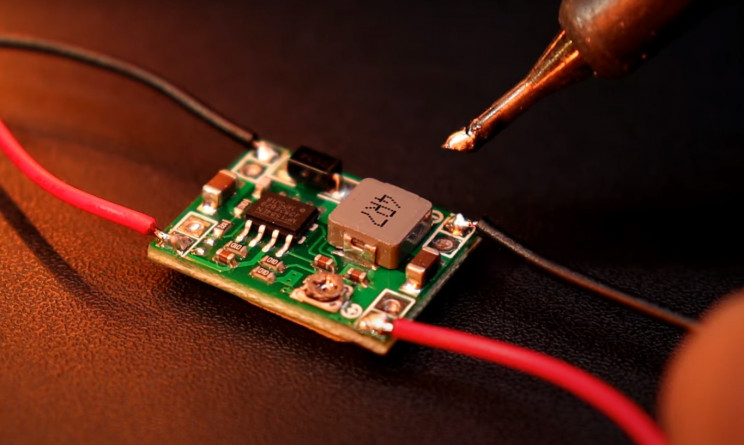

Now wire up and attach the Buck Module to the mainboard (blue power connector).

arduino robot buck
Source: Interesting Engineering

Now add the completed circuit board to the void in the main body assembly completed earlier. Secure into place with the 3D printed restraining bracket and connect up the Arduino Nano with a USB cable.

arduino spider pcb in place
Put the PCB board in place, secure in place the body cap, and connect the Arduino ready to receive code, Source: Interesting Engineering

Download the required code and upload it to the Nano. The code is quite extensive so we have included at the end of this instruction guide.

Now grab the battery and secure it into place on the Arduino spider as shown in the video. Attach to the top of the robot, connect up to the main PCB board, and turn on with the switch to watch your little creation come to life before your very eyes!

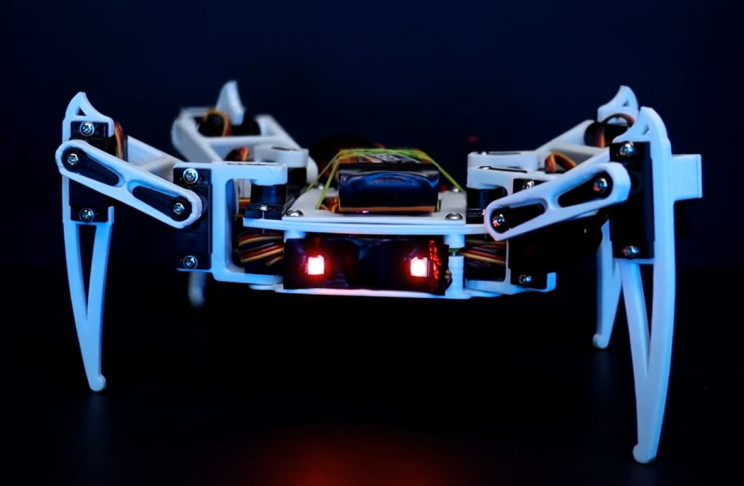

arduino spider complete
The completed beast! Source: Interesting Engineering

Congratulations, and if you want the robot spider to do some other interesting or more special things you can actually build a remote control for it, or add an IR-detector to the build.

Happy building, and modding!

And finally, as promised, here is the much-needed code for this spooky little robot. You will also need to download and install FlexiTimer2 first before compiling the code.

If you don't want to build the robot for yourself, you get your hands on a ready-made equivalent here

Code to test main servos (save and upload as servo_test.ino or download from here)

#include

Servo myservo; // create servo object to control a servo
// twelve servo objects can be created on most boards

int pos = 0; // variable to store the servo position

void setup() {
myservo.attach(2); // attaches the servo on pin 2 to the servo object
}

void loop() {
for (pos = 0; pos <= 180; pos += 1) { // goes from 0 degrees to 180 degrees
// in steps of 1 degree
myservo.write(pos); // tell servo to go to position in variable 'pos'
delay(15); // waits 15ms for the servo to reach the position
}
for (pos = 180; pos >= 0; pos -= 1) { // goes from 180 degrees to 0 degrees
myservo.write(pos); // tell servo to go to position in variable 'pos'
delay(15); // waits 15ms for the servo to reach the position
}
}

Code for locating the initial position of the robot's legs (save and upload as legs_init.ino or download from here)

#include

Servo servo[4][3];

//define servos' ports
const int servo_pin[4][3] = { {2, 3, 4}, {5, 6, 7}, {8, 9, 10}, {11, 12, 13} };

void setup()
{
//initialize all servos
for (int i = 0; i < 4; i++)
{
for (int j = 0; j < 3; j++)
{
servo[i][j].attach(servo_pin[i][j]);
delay(20);
}
}
}

void loop(void)
{
for (int i = 0; i < 4; i++)
{
for (int j = 0; j < 3; j++)
{
servo[i][j].write(90);
delay(20);
}
}
}

Code for making the robot perform some interesting tricks (save and upload as  spider_openV4.ino)

#include //to define and control servos
#include //to set a timer to manage all servos
/* Servos --------------------------------------------------------------------*/
//define 12 servos for 4 legs
Servo servo[4][3];
//define servos' ports
const int servo_pin[4][3] = { {2, 3, 4}, {5, 6, 7}, {8, 9, 10}, {11, 12, 13} };
/* Size of the robot ---------------------------------------------------------*/
const float length_a = 55;
const float length_b = 77.5;
const float length_c = 27.5;
const float length_side = 71;
const float z_absolute = -28;
/* Constants for movement ----------------------------------------------------*/
const float z_default = -50, z_up = -30, z_boot = z_absolute;
const float x_default = 62, x_offset = 0;
const float y_start = 0, y_step = 40;
const float y_default = x_default;
/* variables for movement ----------------------------------------------------*/
volatile float site_now[4][3]; //real-time coordinates of the end of each leg
volatile float site_expect[4][3]; //expected coordinates of the end of each leg
float temp_speed[4][3]; //each axis' speed, needs to be recalculated before each movement
float move_speed; //movement speed
float speed_multiple = 1; //movement speed multiple
const float spot_turn_speed = 4;
const float leg_move_speed = 8;
const float body_move_speed = 3;
const float stand_seat_speed = 1;
volatile int rest_counter; //+1/0.02s, for automatic rest
//functions' parameter
const float KEEP = 255;
//define PI for calculation
const float pi = 3.1415926;
/* Constants for turn --------------------------------------------------------*/
//temp length
const float temp_a = sqrt(pow(2 * x_default + length_side, 2) + pow(y_step, 2));
const float temp_b = 2 * (y_start + y_step) + length_side;
const float temp_c = sqrt(pow(2 * x_default + length_side, 2) + pow(2 * y_start + y_step + length_side, 2));
const float temp_alpha = acos((pow(temp_a, 2) + pow(temp_b, 2) - pow(temp_c, 2)) / 2 / temp_a / temp_b);
//site for turn
const float turn_x1 = (temp_a - length_side) / 2;
const float turn_y1 = y_start + y_step / 2;
const float turn_x0 = turn_x1 - temp_b * cos(temp_alpha);
const float turn_y0 = temp_b * sin(temp_alpha) - turn_y1 - length_side;
/* ---------------------------------------------------------------------------*/

/*
- setup function
---------------------------------------------------------------------------*/
void setup()
{
//start serial for debug
Serial.begin(115200);
Serial.println("Robot starts initialization");
//initialize default parameter
set_site(0, x_default - x_offset, y_start + y_step, z_boot);
set_site(1, x_default - x_offset, y_start + y_step, z_boot);
set_site(2, x_default + x_offset, y_start, z_boot);
set_site(3, x_default + x_offset, y_start, z_boot);
for (int i = 0; i < 4; i++)
{
for (int j = 0; j < 3; j++)
{
site_now[i][j] = site_expect[i][j];
}
}
//start servo service
FlexiTimer2::set(20, servo_service);
FlexiTimer2::start();
Serial.println("Servo service started");
//initialize servos
servo_attach();
Serial.println("Servos initialized");
Serial.println("Robot initialization Complete");
}


void servo_attach(void)
{
for (int i = 0; i < 4; i++)
{
for (int j = 0; j < 3; j++)
{
servo[i][j].attach(servo_pin[i][j]);
delay(100);
}
}
}

void servo_detach(void)
{
for (int i = 0; i < 4; i++)
{
for (int j = 0; j < 3; j++)
{
servo[i][j].detach();
delay(100);
}
}
}
/*
- loop function
---------------------------------------------------------------------------*/
void loop()
{
Serial.println("Stand");
stand();
delay(2000);
Serial.println("Step forward");
step_forward(5);
delay(2000);
Serial.println("Step back");
step_back(5);
delay(2000);
Serial.println("Turn left");
turn_left(5);
delay(2000);
Serial.println("Turn right");
turn_right(5);
delay(2000);
Serial.println("Hand wave");
hand_wave(3);
delay(2000);
Serial.println("Hand wave");
hand_shake(3);
delay(2000);
Serial.println("Body dance");
body_dance(10);
delay(2000);
Serial.println("Sit");
sit();
delay(5000);
}

/*
- sit
- blocking function
---------------------------------------------------------------------------*/
void sit(void)
{
move_speed = stand_seat_speed;
for (int leg = 0; leg < 4; leg++)
{
set_site(leg, KEEP, KEEP, z_boot);
}
wait_all_reach();
}

/*
- stand
- blocking function
---------------------------------------------------------------------------*/
void stand(void)
{
move_speed = stand_seat_speed;
for (int leg = 0; leg < 4; leg++)
{
set_site(leg, KEEP, KEEP, z_default);
}
wait_all_reach();
}


/*
- spot turn to left
- blocking function
- parameter step steps wanted to turn
---------------------------------------------------------------------------*/
void turn_left(unsigned int step)
{
move_speed = spot_turn_speed;
while (step-- > 0)
{
if (site_now[3][1] == y_start)
{
//leg 3&1 move
set_site(3, x_default + x_offset, y_start, z_up);
wait_all_reach();

set_site(0, turn_x1 - x_offset, turn_y1, z_default);
set_site(1, turn_x0 - x_offset, turn_y0, z_default);
set_site(2, turn_x1 + x_offset, turn_y1, z_default);
set_site(3, turn_x0 + x_offset, turn_y0, z_up);
wait_all_reach();

set_site(3, turn_x0 + x_offset, turn_y0, z_default);
wait_all_reach();

set_site(0, turn_x1 + x_offset, turn_y1, z_default);
set_site(1, turn_x0 + x_offset, turn_y0, z_default);
set_site(2, turn_x1 - x_offset, turn_y1, z_default);
set_site(3, turn_x0 - x_offset, turn_y0, z_default);
wait_all_reach();

set_site(1, turn_x0 + x_offset, turn_y0, z_up);
wait_all_reach();

set_site(0, x_default + x_offset, y_start, z_default);
set_site(1, x_default + x_offset, y_start, z_up);
set_site(2, x_default - x_offset, y_start + y_step, z_default);
set_site(3, x_default - x_offset, y_start + y_step, z_default);
wait_all_reach();

set_site(1, x_default + x_offset, y_start, z_default);
wait_all_reach();
}
else
{
//leg 0&2 move
set_site(0, x_default + x_offset, y_start, z_up);
wait_all_reach();

set_site(0, turn_x0 + x_offset, turn_y0, z_up);
set_site(1, turn_x1 + x_offset, turn_y1, z_default);
set_site(2, turn_x0 - x_offset, turn_y0, z_default);
set_site(3, turn_x1 - x_offset, turn_y1, z_default);
wait_all_reach();

set_site(0, turn_x0 + x_offset, turn_y0, z_default);
wait_all_reach();

set_site(0, turn_x0 - x_offset, turn_y0, z_default);
set_site(1, turn_x1 - x_offset, turn_y1, z_default);
set_site(2, turn_x0 + x_offset, turn_y0, z_default);
set_site(3, turn_x1 + x_offset, turn_y1, z_default);
wait_all_reach();

set_site(2, turn_x0 + x_offset, turn_y0, z_up);
wait_all_reach();

set_site(0, x_default - x_offset, y_start + y_step, z_default);
set_site(1, x_default - x_offset, y_start + y_step, z_default);
set_site(2, x_default + x_offset, y_start, z_up);
set_site(3, x_default + x_offset, y_start, z_default);
wait_all_reach();

set_site(2, x_default + x_offset, y_start, z_default);
wait_all_reach();
}
}
}

/*
- spot turn to right
- blocking function
- parameter step steps wanted to turn
---------------------------------------------------------------------------*/
void turn_right(unsigned int step)
{
move_speed = spot_turn_speed;
while (step-- > 0)
{
if (site_now[2][1] == y_start)
{
//leg 2&0 move
set_site(2, x_default + x_offset, y_start, z_up);
wait_all_reach();

set_site(0, turn_x0 - x_offset, turn_y0, z_default);
set_site(1, turn_x1 - x_offset, turn_y1, z_default);
set_site(2, turn_x0 + x_offset, turn_y0, z_up);
set_site(3, turn_x1 + x_offset, turn_y1, z_default);
wait_all_reach();

set_site(2, turn_x0 + x_offset, turn_y0, z_default);
wait_all_reach();

set_site(0, turn_x0 + x_offset, turn_y0, z_default);
set_site(1, turn_x1 + x_offset, turn_y1, z_default);
set_site(2, turn_x0 - x_offset, turn_y0, z_default);
set_site(3, turn_x1 - x_offset, turn_y1, z_default);
wait_all_reach();

set_site(0, turn_x0 + x_offset, turn_y0, z_up);
wait_all_reach();

set_site(0, x_default + x_offset, y_start, z_up);
set_site(1, x_default + x_offset, y_start, z_default);
set_site(2, x_default - x_offset, y_start + y_step, z_default);
set_site(3, x_default - x_offset, y_start + y_step, z_default);
wait_all_reach();

set_site(0, x_default + x_offset, y_start, z_default);
wait_all_reach();
}
else
{
//leg 1&3 move
set_site(1, x_default + x_offset, y_start, z_up);
wait_all_reach();

set_site(0, turn_x1 + x_offset, turn_y1, z_default);
set_site(1, turn_x0 + x_offset, turn_y0, z_up);
set_site(2, turn_x1 - x_offset, turn_y1, z_default);
set_site(3, turn_x0 - x_offset, turn_y0, z_default);
wait_all_reach();

set_site(1, turn_x0 + x_offset, turn_y0, z_default);
wait_all_reach();

set_site(0, turn_x1 - x_offset, turn_y1, z_default);
set_site(1, turn_x0 - x_offset, turn_y0, z_default);
set_site(2, turn_x1 + x_offset, turn_y1, z_default);
set_site(3, turn_x0 + x_offset, turn_y0, z_default);
wait_all_reach();

set_site(3, turn_x0 + x_offset, turn_y0, z_up);
wait_all_reach();

set_site(0, x_default - x_offset, y_start + y_step, z_default);
set_site(1, x_default - x_offset, y_start + y_step, z_default);
set_site(2, x_default + x_offset, y_start, z_default);
set_site(3, x_default + x_offset, y_start, z_up);
wait_all_reach();

set_site(3, x_default + x_offset, y_start, z_default);
wait_all_reach();
}
}
}

/*
- go forward
- blocking function
- parameter step steps wanted to go
---------------------------------------------------------------------------*/
void step_forward(unsigned int step)
{
move_speed = leg_move_speed;
while (step-- > 0)
{
if (site_now[2][1] == y_start)
{
//leg 2&1 move
set_site(2, x_default + x_offset, y_start, z_up);
wait_all_reach();
set_site(2, x_default + x_offset, y_start + 2 * y_step, z_up);
wait_all_reach();
set_site(2, x_default + x_offset, y_start + 2 * y_step, z_default);
wait_all_reach();

move_speed = body_move_speed;

set_site(0, x_default + x_offset, y_start, z_default);
set_site(1, x_default + x_offset, y_start + 2 * y_step, z_default);
set_site(2, x_default - x_offset, y_start + y_step, z_default);
set_site(3, x_default - x_offset, y_start + y_step, z_default);
wait_all_reach();

move_speed = leg_move_speed;

set_site(1, x_default + x_offset, y_start + 2 * y_step, z_up);
wait_all_reach();
set_site(1, x_default + x_offset, y_start, z_up);
wait_all_reach();
set_site(1, x_default + x_offset, y_start, z_default);
wait_all_reach();
}
else
{
//leg 0&3 move
set_site(0, x_default + x_offset, y_start, z_up);
wait_all_reach();
set_site(0, x_default + x_offset, y_start + 2 * y_step, z_up);
wait_all_reach();
set_site(0, x_default + x_offset, y_start + 2 * y_step, z_default);
wait_all_reach();

move_speed = body_move_speed;

set_site(0, x_default - x_offset, y_start + y_step, z_default);
set_site(1, x_default - x_offset, y_start + y_step, z_default);
set_site(2, x_default + x_offset, y_start, z_default);
set_site(3, x_default + x_offset, y_start + 2 * y_step, z_default);
wait_all_reach();

move_speed = leg_move_speed;

set_site(3, x_default + x_offset, y_start + 2 * y_step, z_up);
wait_all_reach();
set_site(3, x_default + x_offset, y_start, z_up);
wait_all_reach();
set_site(3, x_default + x_offset, y_start, z_default);
wait_all_reach();
}
}
}

/*
- go back
- blocking function
- parameter step steps wanted to go
---------------------------------------------------------------------------*/
void step_back(unsigned int step)
{
move_speed = leg_move_speed;
while (step-- > 0)
{
if (site_now[3][1] == y_start)
{
//leg 3&0 move
set_site(3, x_default + x_offset, y_start, z_up);
wait_all_reach();
set_site(3, x_default + x_offset, y_start + 2 * y_step, z_up);
wait_all_reach();
set_site(3, x_default + x_offset, y_start + 2 * y_step, z_default);
wait_all_reach();

move_speed = body_move_speed;

set_site(0, x_default + x_offset, y_start + 2 * y_step, z_default);
set_site(1, x_default + x_offset, y_start, z_default);
set_site(2, x_default - x_offset, y_start + y_step, z_default);
set_site(3, x_default - x_offset, y_start + y_step, z_default);
wait_all_reach();

move_speed = leg_move_speed;

set_site(0, x_default + x_offset, y_start + 2 * y_step, z_up);
wait_all_reach();
set_site(0, x_default + x_offset, y_start, z_up);
wait_all_reach();
set_site(0, x_default + x_offset, y_start, z_default);
wait_all_reach();
}
else
{
//leg 1&2 move
set_site(1, x_default + x_offset, y_start, z_up);
wait_all_reach();
set_site(1, x_default + x_offset, y_start + 2 * y_step, z_up);
wait_all_reach();
set_site(1, x_default + x_offset, y_start + 2 * y_step, z_default);
wait_all_reach();

move_speed = body_move_speed;

set_site(0, x_default - x_offset, y_start + y_step, z_default);
set_site(1, x_default - x_offset, y_start + y_step, z_default);
set_site(2, x_default + x_offset, y_start + 2 * y_step, z_default);
set_site(3, x_default + x_offset, y_start, z_default);
wait_all_reach();

move_speed = leg_move_speed;

set_site(2, x_default + x_offset, y_start + 2 * y_step, z_up);
wait_all_reach();
set_site(2, x_default + x_offset, y_start, z_up);
wait_all_reach();
set_site(2, x_default + x_offset, y_start, z_default);
wait_all_reach();
}
}
}

// add by RegisHsu

void body_left(int i)
{
set_site(0, site_now[0][0] + i, KEEP, KEEP);
set_site(1, site_now[1][0] + i, KEEP, KEEP);
set_site(2, site_now[2][0] - i, KEEP, KEEP);
set_site(3, site_now[3][0] - i, KEEP, KEEP);
wait_all_reach();
}

void body_right(int i)
{
set_site(0, site_now[0][0] - i, KEEP, KEEP);
set_site(1, site_now[1][0] - i, KEEP, KEEP);
set_site(2, site_now[2][0] + i, KEEP, KEEP);
set_site(3, site_now[3][0] + i, KEEP, KEEP);
wait_all_reach();
}

void hand_wave(int i)
{
float x_tmp;
float y_tmp;
float z_tmp;
move_speed = 1;
if (site_now[3][1] == y_start)
{
body_right(15);
x_tmp = site_now[2][0];
y_tmp = site_now[2][1];
z_tmp = site_now[2][2];
move_speed = body_move_speed;
for (int j = 0; j < i; j++)
{
set_site(2, turn_x1, turn_y1, 50);
wait_all_reach();
set_site(2, turn_x0, turn_y0, 50);
wait_all_reach();
}
set_site(2, x_tmp, y_tmp, z_tmp);
wait_all_reach();
move_speed = 1;
body_left(15);
}
else
{
body_left(15);
x_tmp = site_now[0][0];
y_tmp = site_now[0][1];
z_tmp = site_now[0][2];
move_speed = body_move_speed;
for (int j = 0; j < i; j++)
{
set_site(0, turn_x1, turn_y1, 50);
wait_all_reach();
set_site(0, turn_x0, turn_y0, 50);
wait_all_reach();
}
set_site(0, x_tmp, y_tmp, z_tmp);
wait_all_reach();
move_speed = 1;
body_right(15);
}
}

void hand_shake(int i)
{
float x_tmp;
float y_tmp;
float z_tmp;
move_speed = 1;
if (site_now[3][1] == y_start)
{
body_right(15);
x_tmp = site_now[2][0];
y_tmp = site_now[2][1];
z_tmp = site_now[2][2];
move_speed = body_move_speed;
for (int j = 0; j < i; j++)
{
set_site(2, x_default - 30, y_start + 2 * y_step, 55);
wait_all_reach();
set_site(2, x_default - 30, y_start + 2 * y_step, 10);
wait_all_reach();
}
set_site(2, x_tmp, y_tmp, z_tmp);
wait_all_reach();
move_speed = 1;
body_left(15);
}
else
{
body_left(15);
x_tmp = site_now[0][0];
y_tmp = site_now[0][1];
z_tmp = site_now[0][2];
move_speed = body_move_speed;
for (int j = 0; j < i; j++)
{
set_site(0, x_default - 30, y_start + 2 * y_step, 55);
wait_all_reach();
set_site(0, x_default - 30, y_start + 2 * y_step, 10);
wait_all_reach();
}
set_site(0, x_tmp, y_tmp, z_tmp);
wait_all_reach();
move_speed = 1;
body_right(15);
}
}

void head_up(int i)
{
set_site(0, KEEP, KEEP, site_now[0][2] - i);
set_site(1, KEEP, KEEP, site_now[1][2] + i);
set_site(2, KEEP, KEEP, site_now[2][2] - i);
set_site(3, KEEP, KEEP, site_now[3][2] + i);
wait_all_reach();
}

void head_down(int i)
{
set_site(0, KEEP, KEEP, site_now[0][2] + i);
set_site(1, KEEP, KEEP, site_now[1][2] - i);
set_site(2, KEEP, KEEP, site_now[2][2] + i);
set_site(3, KEEP, KEEP, site_now[3][2] - i);
wait_all_reach();
}

void body_dance(int i)
{
float x_tmp;
float y_tmp;
float z_tmp;
float body_dance_speed = 2;
sit();
move_speed = 1;
set_site(0, x_default, y_default, KEEP);
set_site(1, x_default, y_default, KEEP);
set_site(2, x_default, y_default, KEEP);
set_site(3, x_default, y_default, KEEP);
wait_all_reach();
//stand();
set_site(0, x_default, y_default, z_default - 20);
set_site(1, x_default, y_default, z_default - 20);
set_site(2, x_default, y_default, z_default - 20);
set_site(3, x_default, y_default, z_default - 20);
wait_all_reach();
move_speed = body_dance_speed;
head_up(30);
for (int j = 0; j < i; j++)
{
if (j > i / 4)
move_speed = body_dance_speed * 2;
if (j > i / 2)
move_speed = body_dance_speed * 3;
set_site(0, KEEP, y_default - 20, KEEP);
set_site(1, KEEP, y_default + 20, KEEP);
set_site(2, KEEP, y_default - 20, KEEP);
set_site(3, KEEP, y_default + 20, KEEP);
wait_all_reach();
set_site(0, KEEP, y_default + 20, KEEP);
set_site(1, KEEP, y_default - 20, KEEP);
set_site(2, KEEP, y_default + 20, KEEP);
set_site(3, KEEP, y_default - 20, KEEP);
wait_all_reach();
}
move_speed = body_dance_speed;
head_down(30);
}


/*
- microservos service /timer interrupt function/50Hz
- when set site expected,this function move the end point to it in a straight line
- temp_speed[4][3] should be set before set expect site,it make sure the end point
move in a straight line,and decide move speed.
---------------------------------------------------------------------------*/
#define E_DELTA 0.01
void servo_service(void)
{
sei();
static float alpha, beta, gamma;

for (int i = 0; i < 4; i++)
{
for (int j = 0; j < 3; j++)
{
if (abs(site_now[i][j] - site_expect[i][j]) < (abs(temp_speed[i][j])+E_DELTA))
site_now[i][j] = site_expect[i][j];
else
site_now[i][j] += temp_speed[i][j];
}

cartesian_to_polar(alpha, beta, gamma, site_now[i][0], site_now[i][1], site_now[i][2]);
polar_to_servo(i, alpha, beta, gamma);
}

rest_counter++;
}

/*
- set one of end points' expect site
- this founction will set temp_speed[4][3] at same time
- non - blocking function
---------------------------------------------------------------------------*/
void set_site(int leg, float x, float y, float z)
{
float length_x = 0, length_y = 0, length_z = 0;

if (x != KEEP)
length_x = x - site_now[leg][0];
if (y != KEEP)
length_y = y - site_now[leg][1];
if (z != KEEP)
length_z = z - site_now[leg][2];

float length = sqrt(pow(length_x, 2) + pow(length_y, 2) + pow(length_z, 2));

temp_speed[leg][0] = length_x / length * move_speed * speed_multiple;
temp_speed[leg][1] = length_y / length * move_speed * speed_multiple;
temp_speed[leg][2] = length_z / length * move_speed * speed_multiple;

if (x != KEEP)
site_expect[leg][0] = x;
if (y != KEEP)
site_expect[leg][1] = y;
if (z != KEEP)
site_expect[leg][2] = z;
}

/*
- wait one of end points move to expect site
- blocking function
---------------------------------------------------------------------------*/
void wait_reach(int leg)
{
while (1)
if (site_now[leg][0] == site_expect[leg][0])
if (site_now[leg][1] == site_expect[leg][1])
if (site_now[leg][2] == site_expect[leg][2])
break;
}

/*
- wait all of end points move to expect site
- blocking function
---------------------------------------------------------------------------*/
void wait_all_reach(void)
{
for (int i = 0; i < 4; i++)
wait_reach(i);
}

/*
- trans site from cartesian to polar
- mathematical model 2/2
---------------------------------------------------------------------------*/
void cartesian_to_polar(volatile float &alpha, volatile float &beta, volatile float &gamma, volatile float x, volatile float y, volatile float z)
{
//calculate w-z degree
float v, w;
w = (x >= 0 ? 1 : -1) * (sqrt(pow(x, 2) + pow(y, 2)));
v = w - length_c;
alpha = atan2(z, v) + acos((pow(length_a, 2) - pow(length_b, 2) + pow(v, 2) + pow(z, 2)) / 2 / length_a / sqrt(pow(v, 2) + pow(z, 2)));
beta = acos((pow(length_a, 2) + pow(length_b, 2) - pow(v, 2) - pow(z, 2)) / 2 / length_a / length_b);
//calculate x-y-z degree
gamma = (w >= 0) ? atan2(y, x) : atan2(-y, -x);
//trans degree pi->180
alpha = alpha / pi * 180;
beta = beta / pi * 180;
gamma = gamma / pi * 180;
}

/*
- trans site from polar to microservos
- mathematical model map to fact
- the errors saved in eeprom will be add
---------------------------------------------------------------------------*/
void polar_to_servo(int leg, float alpha, float beta, float gamma)
{
if (leg == 0)
{
alpha = 90 - alpha;
beta = beta;
gamma += 90;
}
else if (leg == 1)
{
alpha += 90;
beta = 180 - beta;
gamma = 90 - gamma;
}
else if (leg == 2)
{
alpha += 90;
beta = 180 - beta;
gamma = 90 - gamma;
}
else if (leg == 3)
{
alpha = 90 - alpha;
beta = beta;
gamma += 90;
}

servo[leg][0].write(alpha);
servo[leg][1].write(beta);
servo[leg][2].write(gamma);
}

Interesting Engineering is a participant of the Amazon Services LLC Associates Program and various other affiliate programs, and as such there might be affiliate links to the products in this article. By clicking the links and shopping at partner sites, you do not only get the materials you need but also are supporting our website.

Advertisement
Follow Us on

Stay on top of the latest engineering news

Just enter your email and we’ll take care of the rest:

By subscribing, you agree to our Terms of Use and Privacy Policy. You may unsubscribe at any time.
