Here's How to Make 'Tommy' Machine Gun Out of Cardboard

A fond favorite of British troops and gangsters of old, the "Tommy" gun is an iconic weapon.

If the video player is not working, you can click on this alternative video link.

If you enjoyed our video on making your own Nerf-like rifle, then we are confident that this project will also be right up your street. This time the subject is an actual cardboard replica "Tommy Gun". It even fires little paper "bullets".

Follow this simple guide to find out how.

diy cardboard tommy gun complete
Source: Toy DIY/YouTube

Materials and gear needed

Optional

  • Paper cups for targets

With all your tools and materials in hand, it is now time to get on with this epic, but awesome, build.

Step 1: Cut out the templates and start the build

Like any project of this nature, the first step is to mark out, and obviously cut out, the template pieces for the Tommy Gun. You can find them in the materials list above.

Print these out on A4 paper, cut them out and glue them to bits of cardboard, and carefully cut them out as needed. Be warned you will need several copies of the same shape for some parts of the gun (like "Body Layer 3" for example). Once that is done, we can start to actually build the cardboard gun.

Advertisement

Take the main grip piece ("Body Layer 3") on the templates and then glue "Body Layer 4" onto one side of it. Make sure the pieces are aligned properly.

cardboard tommy gun grip
Source: Toy DIY/YouTube

Next, take the other smaller piece from the "Body Layer 3", and glue that into place on the main grip piece too.

With that done, cut three small lengths of wooden skewers, and glue them into place into the three holes just above the trigger ring. For the best results, use superglue for this process.

diy cardboard tommy gun wooden skewers
Source: Toy DIY/YouTube

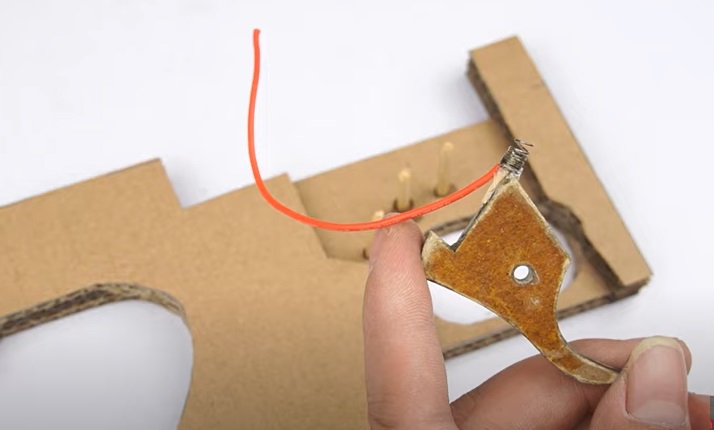

With that done, take the parts from "Body Layer 5", and glue a small spring with connected wire into place as shown below.

diy cardboard tommy gun trigger
Source: Toy DIY/YouTube

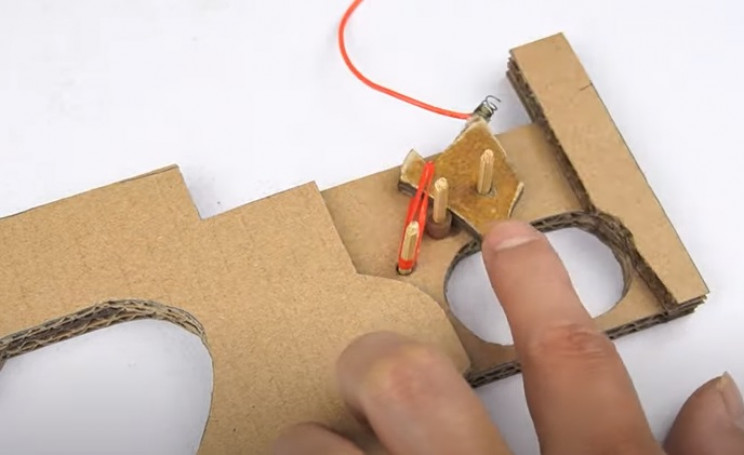

Leave the glue to cool, and then attach the trigger onto the frontmost of the three wooden pegs. With that complete, take a small elastic band and wrap it around the rearmost peg and hook above the trigger piece.

Advertisement
diy cardboard tommy gun trigger in place
Source: Toy DIY/YouTube

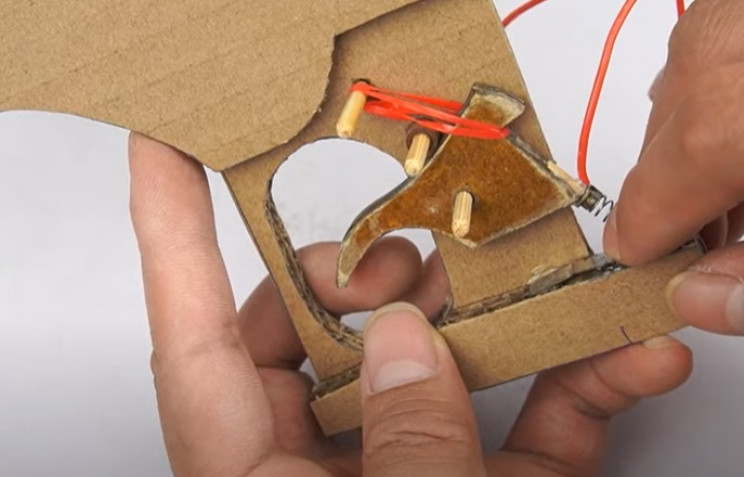

Next, apply a line of hot glue opposite the gun onto the smaller piece from "Body Layer 4". After that, fix into place a short strip of metal with another wire attached. This will form a connection between the spring on the trigger and the plate when the trigger is depressed.

diy cardboard tommy gun trigger plate
Source: Toy DIY/YouTube

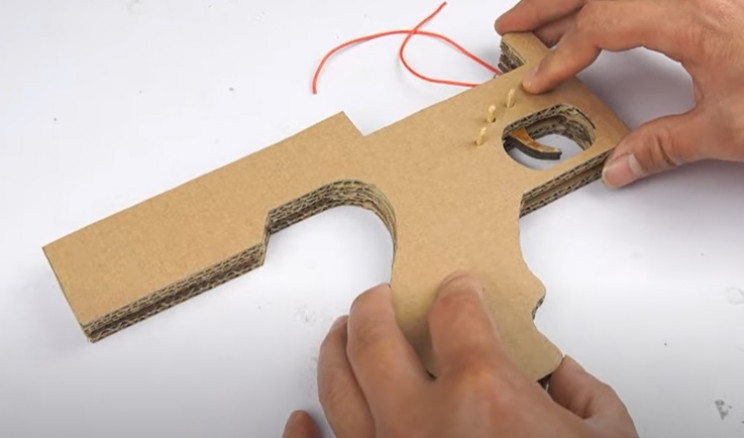

With that done, sealed up the trigger mechanism with a second "Body Layer 3" piece.

diy cardboard tommy gun close body
Source: Toy DIY/YouTube

Step 2: Make the gun's bullet acceleration system

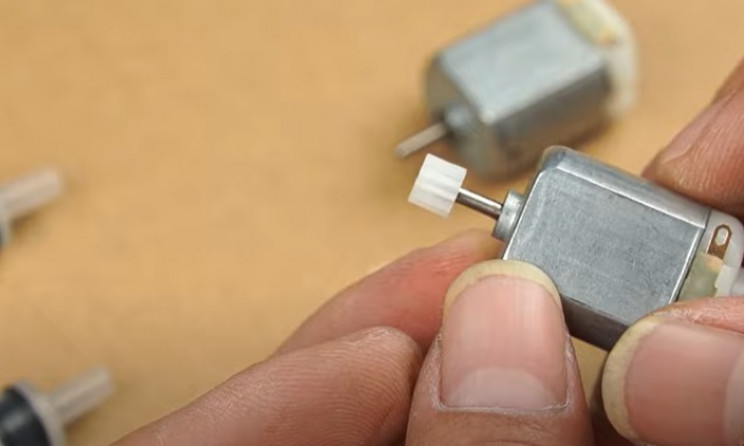

Next, take a pair of plastic syringes and a pair of DC motors. Add two small plastic cogs to the axles of the DC motors.

diy cardboard tommy gun motors
Source: Toy DIY/YouTube

With that done, remove the plungers from the syringes, and peel off the rubber end caps. Hot glue these caps into place over the plastic gears on the motor axles.

diy cardboard tommy gun rubber caps
Source: Toy DIY/YouTube

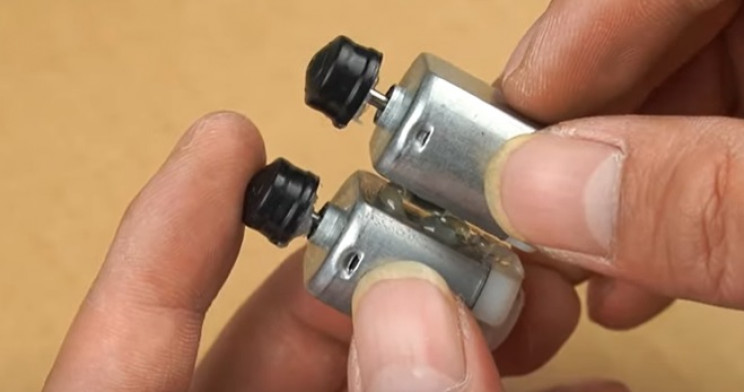

Now hot glue the two motors together so that both rubber caps are above one another.

Advertisement
diy cardboard tommy gun motors
Source: Toy DIY/YouTube

After that, hold the motors in vice, or similar, and wire up the electrical contacts of the motors in sequence, as needed, using a soldering iron. It is advised you use different colored wires for the positive and negative terminals.

diy cardboard wire up motors
Source: Toy DIY/YouTube

Step 3: Make the main firing mechanism

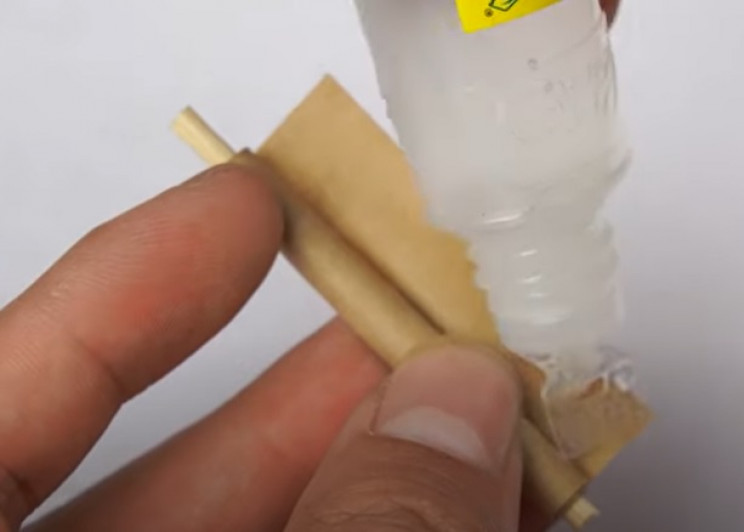

With that done, cut a strip of brown paper 2 and 11/64ths inch (5.5 cm) in width. Roll the paper into an open cylinder around a length of a wooden skewer, as shown below. Glue the paper together to hold the cylinder in shape.

diy cardboard tommy gun cardboard cylinder
Source: Toy DIY/YouTube

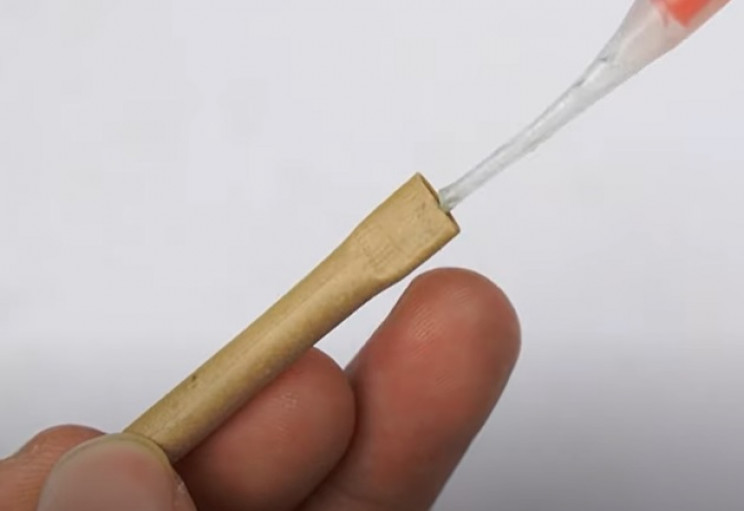

Once the glue is dry, partially remove the wooden skewer guide piece, and flatten one end of the cylinder. Soak the flattened end in superglue to harden and secure it.

diy cardboard tommy gun flatten cylinder
Source: Toy DIY/YouTube

Mark a hole in the middle of the flattened end, and pierce a hole through it to make an eye. With that done, take another strip of paper 25/64ths of an inch (1 cm) in width, and wind it around the first cylinder just below the flattened end to make a flange.

Advertisement
diy cardboard tommy gun flange
Source: Toy DIY/YouTube

Glue the end of the flange strip together, but do not glue the flange to the larger cylinder. It should be able to move freely up and down in it.

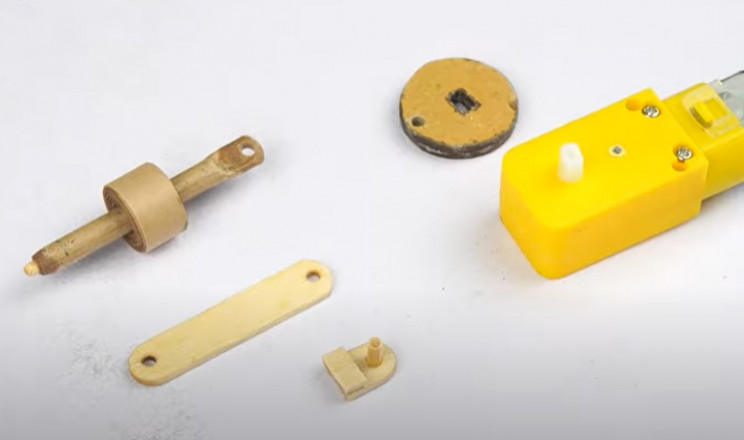

With that done, cut out and assemble the matching wooden pieces from the "Mechanism Layer" of the template sheet.

diy cardboard tommy gun firing mech
Source: Toy DIY/YouTube

Assemble the pieces as shown below.

diy cardboard tommy gun assemble firing mech
Source: Toy DIY/YouTube

As you can see, this setup creates a reciprocating arm driven by the motor. This will be used to push bullets automatically into the barrel for firing.

Step 4: Integrate the firing mechanism into the gun body

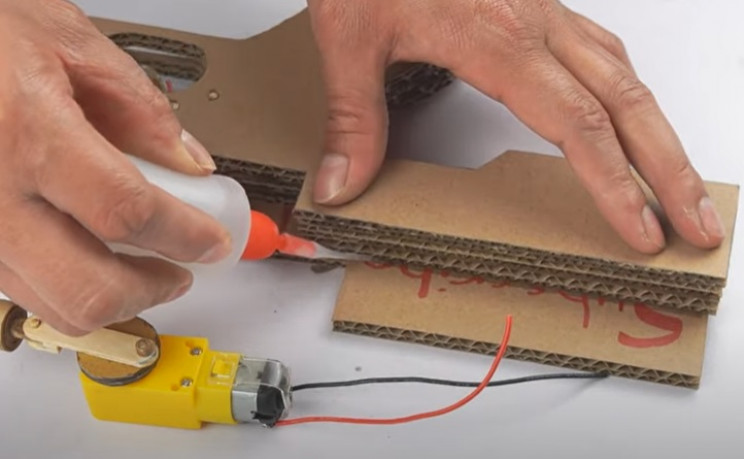

With that complete, take the parts already made and the bottom piece from "Body Layer 2". Glue the main grip part of the gun into place on the "Body Layer 2" part, as shown below.

doy cardboard tommy gun body layer 2
Source: Toy DIY/YouTube

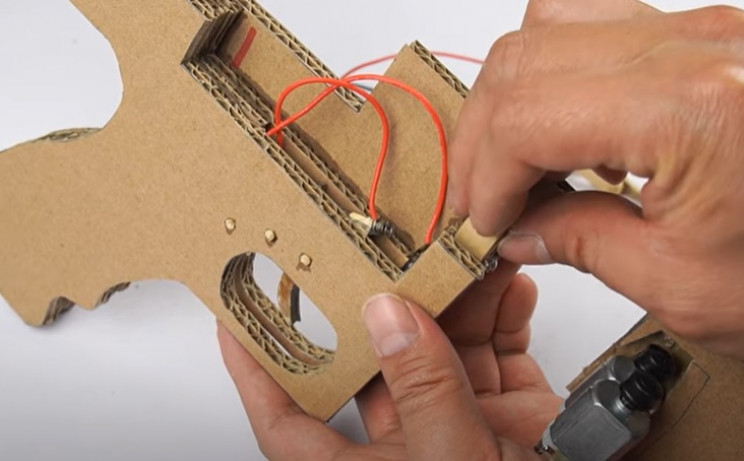

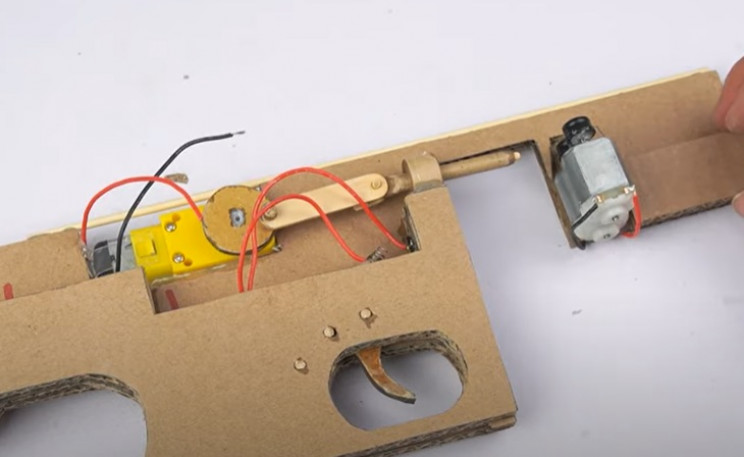

Next, glue the motor assembly into place on the main body as needed. With that done, glue the flange from the firing mechanism you made earlier into place on the trigger and grip part of the gun.

Advertisement
diy cardboard tommy gun flange glue
Source: Toy DIY/YouTube

Next, feed through the cardboard rod from the main firing mechanism through the flange, and glue the main drive motor into place within its slot on the "Body Layer 2" section of cardboard.

diy cardboard tommy gun firing assembly in place
Source: Toy DIY/YouTube

With that done, add a length of a skewer to the top of the gun, and other ancillary filler pieces of cardboard to the assembly as shown below.

diy carboard tommy gun build up body
Source: Toy DIY/YouTube

With that done, wire up the electronic components as needed. Twist connections together, and then seal them into place using heat shrink insulation tubing. At this point be sure to add the button to the circuitry as well.

diy cardboard tommy gun wiring
Source: Toy DIY/YouTube

Next, take your battery pack and connect it to the main wiring as needed. Glue it into place to the rear of the gun. You can now perform a dry firing of the gun by activating the button and pulling the trigger.

Advertisement

The reciprocating arm of the firing mechanism should move back and forth through the flange and move in line with the twin motors. These will accelerate the bullet out of the barrel once complete.

diy cardboard tommy gun dry fire
Source: Toy DIY/YouTube

Step 5: Make the barrel

With the main gun firing mechanism now complete, we can move on to building the rest of the gun. Let's start with the barrel. Take a length of paper 11 and 13/16 inches (30 cm) in width.

As with the small flange before, roll into a long open cylinder. The bore of the cylinder will need to be slightly larger than the size of the cardboard bullets (bolts) to be fired.

With that complete, take another strip of paper 2 and 23/64 inches (6cm) wide and wind around one end of the barrel to make a large flange.

diy carboard tommy gun barrel build
Source: Toy DIY/YouTube

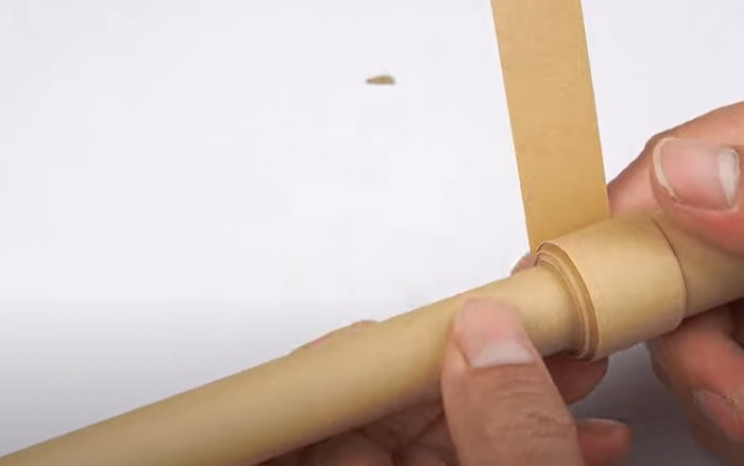

Next, repeat the process with another strip of paper 25/32ths of an inch (2cm) wide and wind around the bottom of the last flange.

diy cardboard tommy gun second flange
Source: Toy DIY/YouTube

With that complete, take another strip of paper 4 and 21/64ths of an inch (11 cm) wide and wrap it around the main barrel slightly further down from the other flanges you've just made.

diy cardboard tommy gun mid flange
Source: Toy DIY/YouTube

Next, take a sharp knife, and then down the wall of one side of the barrel end. This is to make room for the barrel to fit on top of the dual motors on the main gun.

With that done, glue the barrel into place on the main gun assembly forward of the dual motors.

diy cardboard tommy gun barrel in place
Source: Toy DIY/YouTube

With that done, take another piece of the bottom part of "Body Layer 2" and close up the main body of the gun. Be sure to secure the button into place on this one.

diy cardboard tommy gun close body
Source: Toy DIY/YouTube

Step 6: Make the stock of the gun and front grip

With the min gun body, barrel, and firing mechanism now complete, it is time to add more decorative features to make it look like a semi-real gun. Let's turn out attention to the stock.

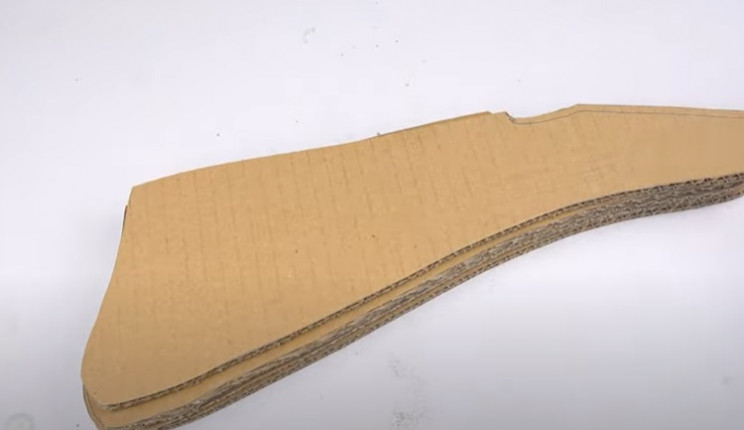

Take one of the "Butt Layer 4" pieces (you'll need two), and three of the "Butt Layer 1" pieces. Glue a stack of the latter onto the former, and close the piece using the second "Butt Layer 4" piece.

diy cardboard tommy gun butt assemble
Source: Toy DIY/YouTube

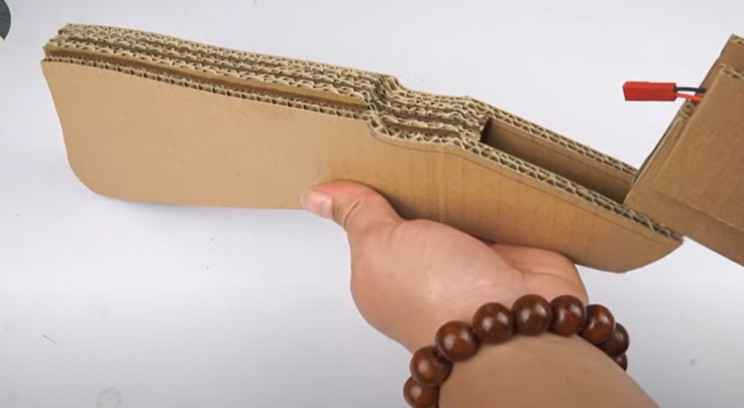

With that done, take the butt and mount it to the main gun assembly as shown below.

diy cardboard tommy gun mount butt
Source: Toy DIY/YouTube

With that done, take the closer pieces (like "Accessories Layer 1") for the dual-motor portion of the Tommy Gun and glue them into place as required.

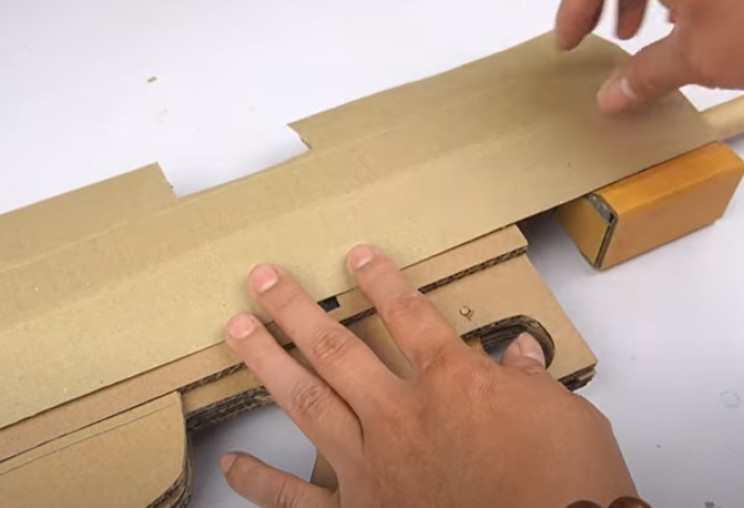

Then take the "Accessories Layer 2" piece and glue that into place to the top of the gun, as shown below.

diy cardboard tommy gun top
Source: Toy DIY/YouTube

Trim off excess pieces around the drum magazine mounting point as required. With that done, take the pieces for the front handgrip. Glue and stack three of them together.

Next, apply a line of hot glue to the top of the piece and stick a wooden skewer into place.

diy cardboard tommy gun front grip
Source: Toy DIY/YouTube

Once done, mount the grip into place just below the barrel at the front of the main gun body.

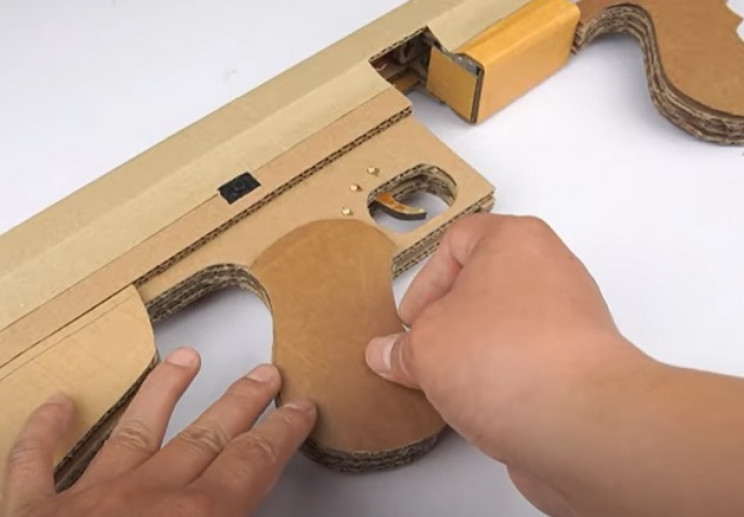

Next, take the parts from "Body Layer 5", and glue them into place on the main gun grip.

diy cardboard tommy gun build up grip
Source: Toy DIY/YouTube

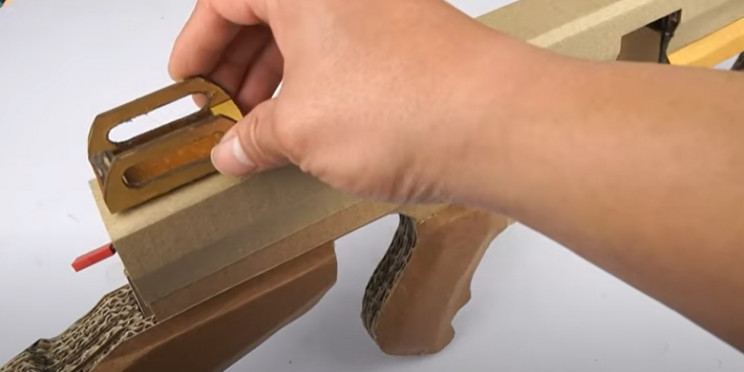

Also, add the other layer pieces from "Butt Layer 1" to the rear stock. With that done, take the "Rear Sight" pieces, assemble as required, and mount them into place on top of the Tommy Gun as shown below.

diy cardboard tommy gun rear sight
Source: Toy DIY/YouTube

Rinse and repeat for the front site, and mount into place on the front of the gun's barrel.

Step 7: Make the drum magazine

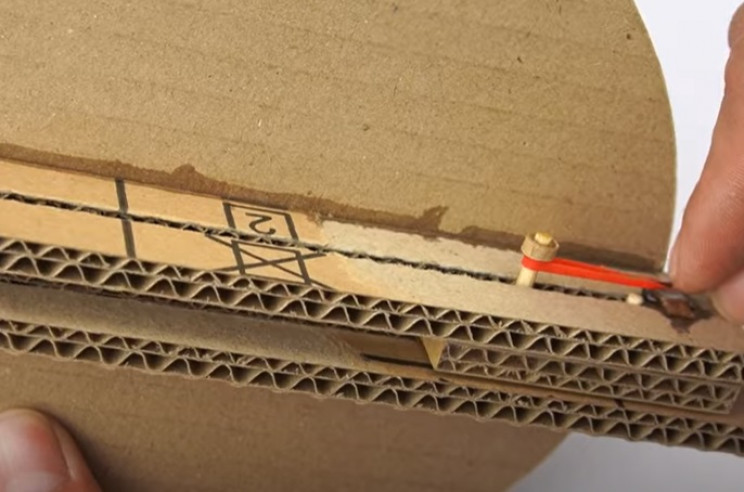

With that done, it is now time to turn our attention to one of the main features of the Tommy Gun -- the famous drum magazine. Take one of the large circle pieces, and add the middle "Magazine Layer 2" mechanism pieces as needed.

Once done, add two small hooks on either side of the cardboard parts, and run elastic bands from the hooks to the wooden pegs.

diy cardboard tommy gun magazine layer 2
Source: Toy DIY/YouTube

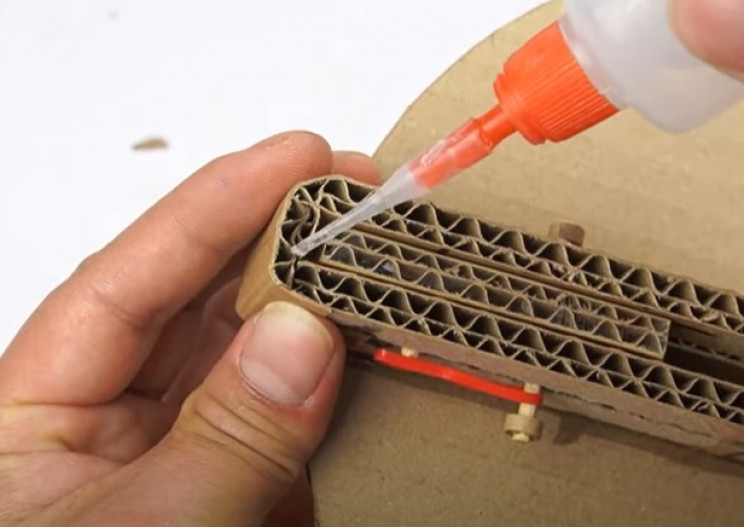

Trim and bend the end of the longer of the two strips for the "Magazine Layer 2", and fold over to make an arch above the spring-loaded bullet plunger.

diy cardboard tommy gun magazine top
Source: Toy DIY/YouTube

With that done, glue the second part of the drum magazine outer casing, and close up the entire drum with the wall strip from "Magazine layer 4".

diy cardboard tommy gun magazine wall
Source: Toy DIY/YouTube

 With that complete, take the other decorative features ("Magazine Layer 3") of the drum magazine, and glue them onto place on one face of the drum magazine as needed.

Once done, it is time to actually make some ammunition for the gun. To make one bullet, take a strip of paper 63/64ths of an inch (2.5 cm) wide. Roll the paper into a tight cylinder.

Add a dot of super glue to one end to seal and harden it. Rinse and repeat to make as many bullets as you want.

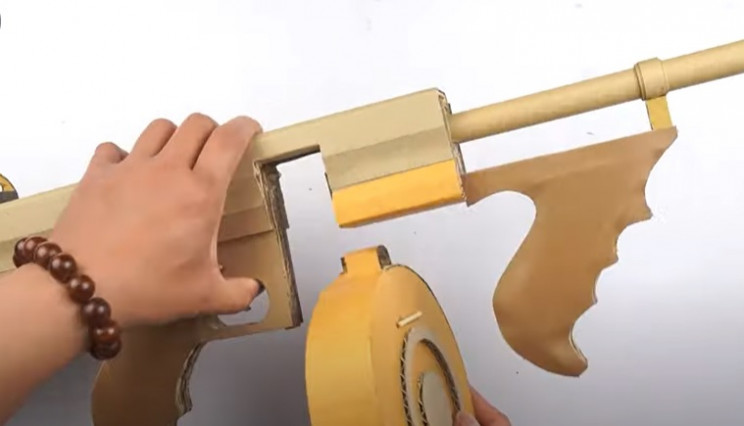

diy cadboard tommy gun load
Source: Toy DIY/YouTube

Once done, load them into the drum magazine, and clip the magazine into place on the machine gun. Then glue on any extra decorative pieces around the magazine as needed.

With that done, your Tommy machine gun is now complete. Now all you need to do is set up some suitable targets, flick the gun on, and bring out the inner gangster within!

If you enjoyed this project, then you might enjoy another toy weapon-related project. How about, for example, making your own real-life epoxy Sub Zero sword? Yeah, really.
