Here's how common LPG tanks are made from sheets of metal

Let's take a look at how LPG tanks are made in a factory.
Christopher McFadden

If the video player is not working, you can watch the video from this alternative link.
Liquid petroleum gas (LPG) is a type of, as the name suggests, liquified gas that can be used for various purposes from heating your home to powering your car (once adapted). Just like other liquid fuels, LPG needs to be stored in specially created tanks so that the fuel can be stored, transported, and used without evaporating.

But, have you ever wondered how these tanks are actually made? Let's see how one manufacturer makes them from scratch.

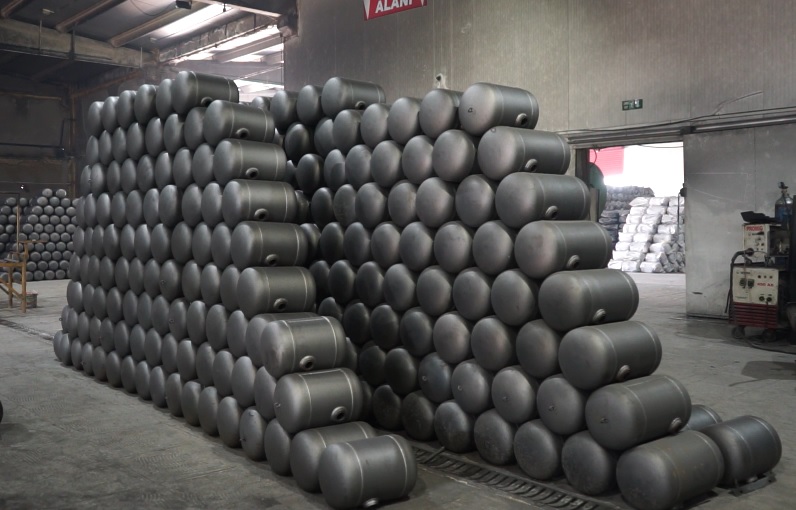

lpg tank complete
Source: Interesting Engineering

Step 1: Making the main LPG tank bodies

The first step is to grab a load of metal sheeting in various shapes and sizes for the LPG tanks to be made. For this particular factory, the sheeting consists of a variety of disks and flat sheets.

These pieces are stored and sorted ready for use.

To start the process, disks of steel are placed in a 500-ton special press and molded into shape to form the hemispherical ends of the tanks. This is done by a skilled worker who manipulates the sheets, operates the press, and checks each piece to ensure it has been pressed correctly.

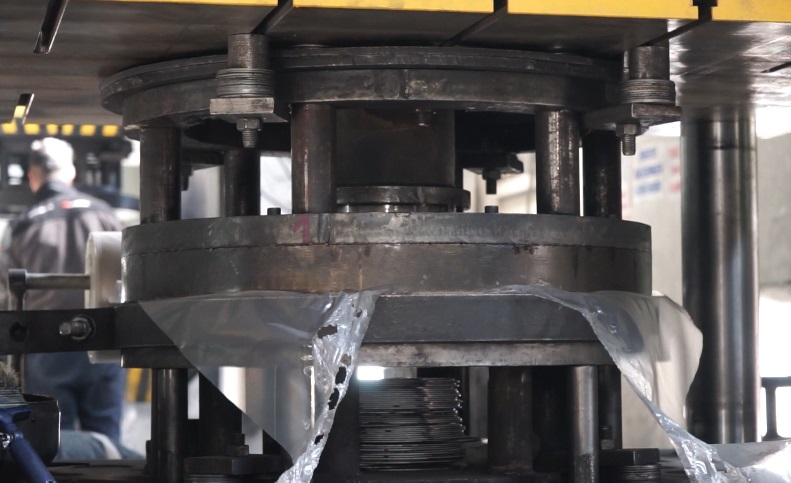

lpg tank press
Source: Interesting Engineering

Once pressed into a donut shape, the parts are then stored ready for the next part of the process. The next part of the process is to mount the end caps into another special machine to trim them down.

This machine works similar to a large can opener with a sharp metal disk that trims off a strip of the tank part as it spins.

lpg tank trim
Source: Interesting Engineering

For more cylindrical tanks sheet metal is passed through a series of presses and rollers to make bands of metal into which valve pieces are set. Valves are also included within the rings to allow LPG to be filled and drawn from the tanks once complete.

These are welded into place, as needed.

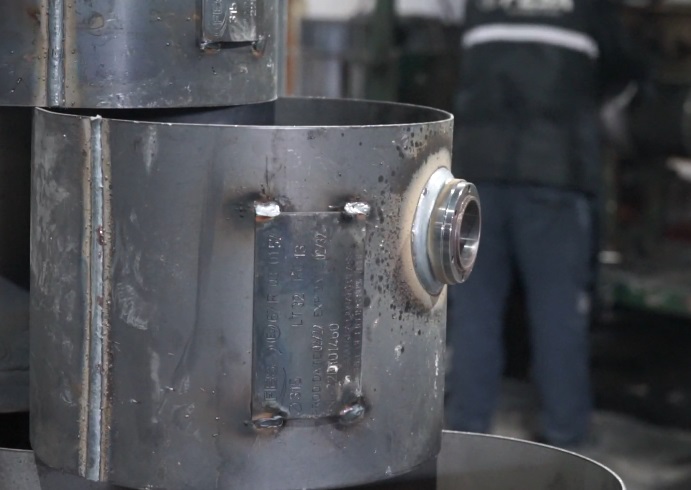

lpg tank valves
Source: Interesting Engineering

Where needed, information plates are also welded into place on parts as required.

Step 2: Welding the tanks together

With the main parts of the LPG tanks ready, the next step is to join them together. Each half of the tank is placed in yet another machine and then the spot-welded top holds the two parts together.

Once done, the press then joins the inner portion of the tank together to ensure that it is airtight. With that done, each ring tank is removed from the machine and all joins are then welded by hand.

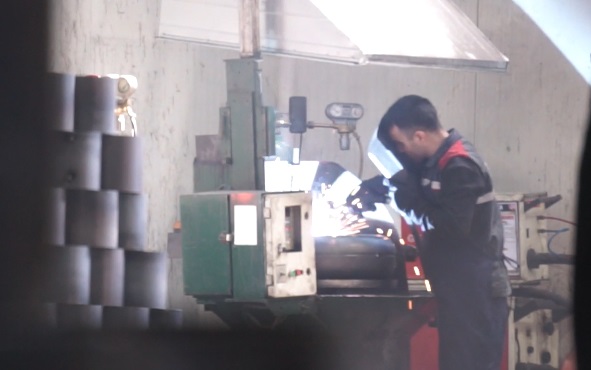

lpg tank welding
Source: Interesting Engineering

Once the welds are fused, a skilled worker then hammers and grinds the weld smooth. With that done, the tanks are then moved to another lathe-like welding machine for further welding.

This machine operates autonomously and creates a very strong weld between the two halves of the tank.

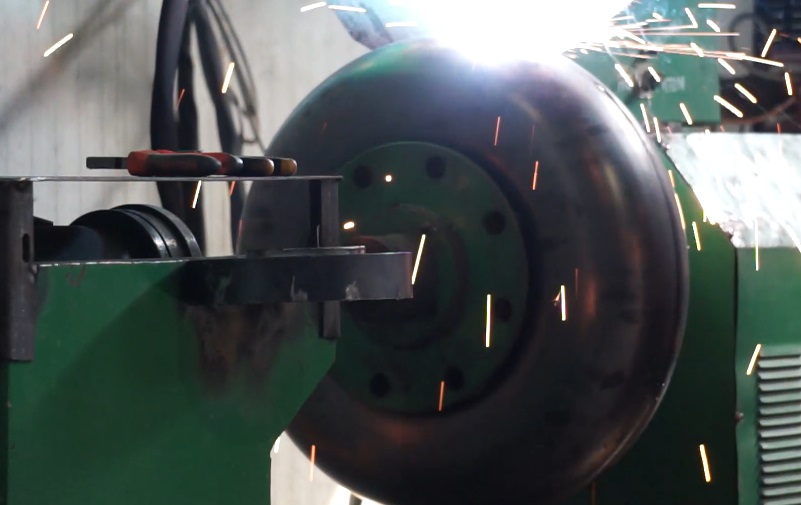

lpg tank welding machine
Source: Interesting Engineering

This machine is very versatile, can be used to weld different shapes and sizes of tanks. At all stages of the welding, a skilled worker is present to monitor the process and intervene or correct should their experience deem it necessary.

Step 3: Coating the tanks

With the main tanks now more or less complete, the next step is to coat the tanks. The tanks are suspended from hooks and placed in a large coating machine ready and heated/cleaned for a period of time.

Once complete, the tanks are removed from the machine and left to cool/cure.

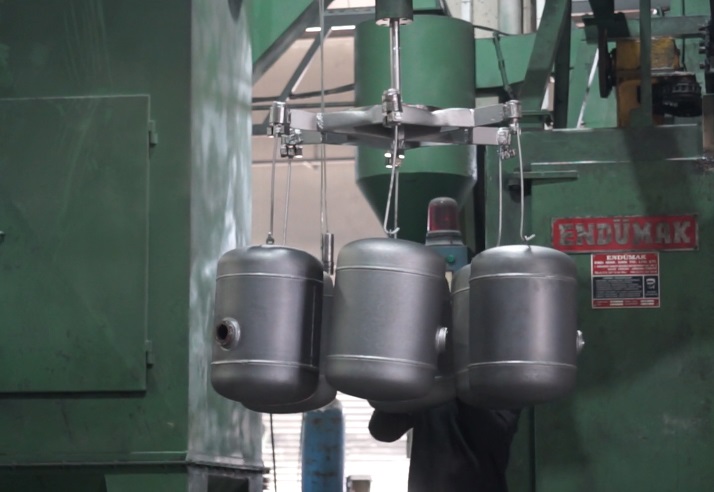

lpg tank cleaning
Source: Interesting Engineering

With that, the LPG tanks are now basically ready to be shipped out to their final destinations.

If you enjoyed this little look behind the scenes of how LPG tanks are made from scratch, you might enjoy watching another industrial process in action? How about, for example seeing how hair dye products are made?
