How to Turn an Old Washing Machine into a Ceiling Fan

Got an old washing machine and need a new fan? Then, here's your chance to kill two birds with one stone.

If the video player is not working, you can click on this alternative video link.

If you like giving old scrap a new lease in life, then you'll certainly enjoy this amazing DIY project. In this case, we'll take the motor and gearbox from an old washing machine and turn it into a functional, and frankly badass-looking ceiling fan.

If that sounds of interest, follow this simple guide to finding out how.

washing machine to fan complete
Source: Sek Austria/YouTube

As you can imagine, like any project of this nature, you'll need some tools and materials before you get started.

Materials and gear needed

Step 1: Source your main motor and gearbox

The first step, obviously, is to find a suitable washing machine motor and planetary gearbox. You can either rescue these from an old machine or source new parts -- whichever is easier for your and your budget.

Advertisement

For salvaged parts, check to see that the motor and gearbox are actually functional first.

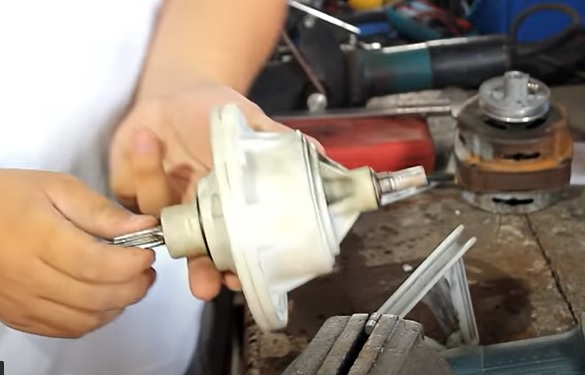

With that done, take the gearbox and remove some of the parts as shown. Then trim down one end of the main axle.

ceiling fan from washing machine prep
Source: Sek Austria/YouTube

With that done, take a small length of steel rod 3/4 inch (19 mm) wide and secure it into your lathe. Machine a hole through the center of it to match the diameter of the axle of the main motor (in this case 25/64ths of an inch/10 mm)

diy ceiling fan from washing machine flange
Source: Sek Austria/YouTube

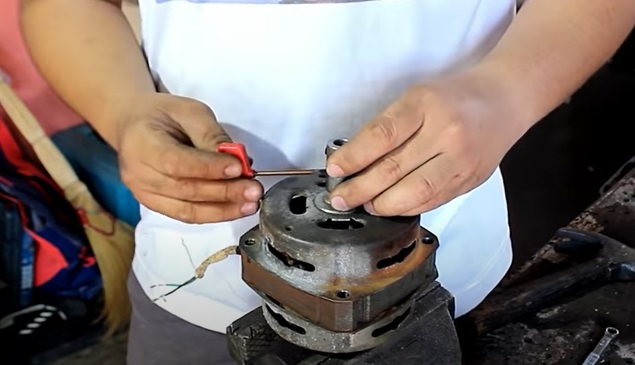

Drill some nut sleeve holes to the side of the now cylinder and insert matching sleeve bolts, as needed. Fasten the cylinder to the main axle of the washing machine motor.

diy washing machine to ceiling fan sleeve
Source: Sek Austria/YouTube

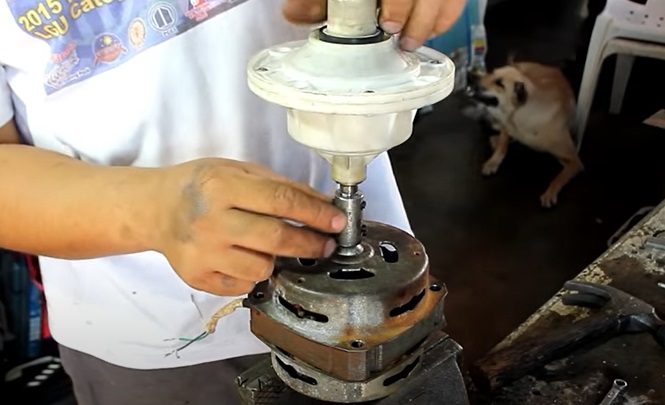

With that done, mount the planetary gearbox to the other open end of the connecting cylinder. Tighten the sleeve bolts as needed.

Advertisement
diy washing machine to ceiling fan parts
Source: Sek Austria/YouTube

Disassemble the gearbox, cylinder, and gearbox once again.

Step 2: Make the mounting frame for the motor and gearbox

Next, take a disc of steel plate 5/32ths of an inch (4 mm) thick and 6 inches (152 mm) in diameter. Mark out eight equal points around the inner circumference of the circle.

washing machine to ceiling fan disc
Source: Sek Austria/YouTube

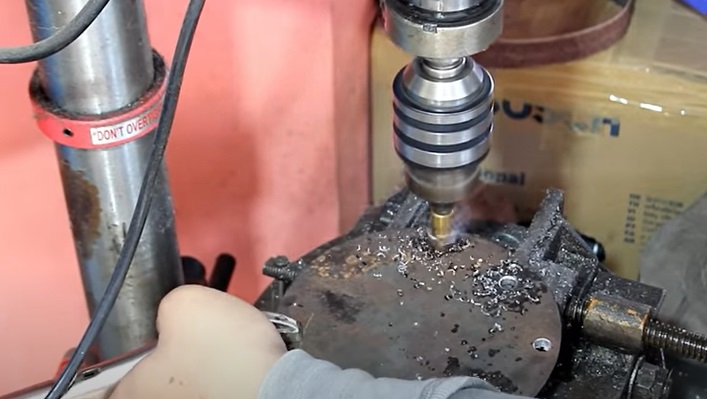

With that done, bore a hole through each point using a stepped drill bit to form a countersunk hole.

washing machine to fan holes
Source: Sek Austria/YouTube

Drill another hole in the middle of the plate too. With that done, core the middle of the plate. With that done, take a series of M8 screw end rods, insert them into each second hole (four in total), hold with a magnetic clamp, and weld to the disc.

washing machine to ceiling fan weld rods
Source: Sek Austria/YouTube

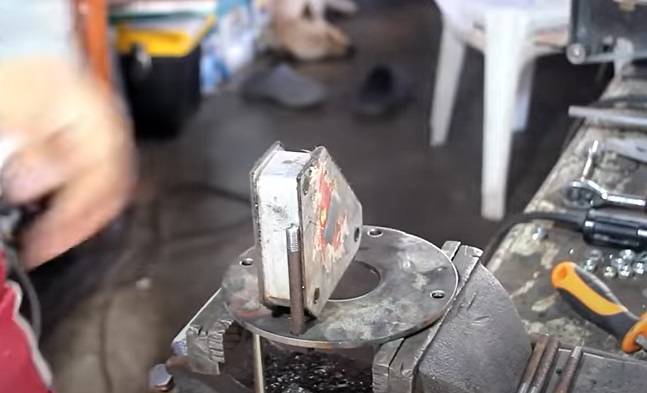

With that done, take some shorter M8 rods, and weld to the reverse side of the disc on the remaining four empty holes.

Advertisement
washing machine to fan other rods
Source: Sek Austria/YouTube

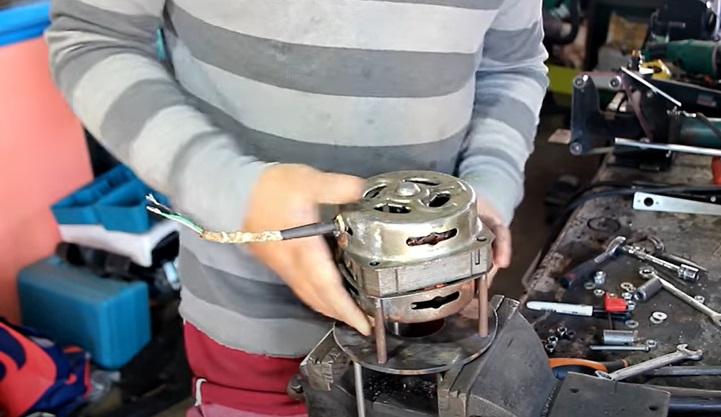

With that done, take your motor, and secure it into place on the shorter rods of the disc.

washing machine to fan motor to disc
Source: Sek Austria/YouTube

With that done, secure the gearbox into a vice, and drill a hole through what will be the exposed side of the axle.

Next, add some bolts and washers to the longer rods of the disc at a distance needed to hold the gearbox in the right position. Then secure the cylinder you made earlier and remount that the motor axle within the frame.

Next, take the gearbox, line it up with the rods, and mount it into place matching the main axle (and mounting cylinder) of the motor.

washing machine to ceiling fan frame gearbox
Source: Sek Austria/YouTube

Tighten all connecting bolts, and sleeve nuts, and test the action of the main drive axle of the motor. It should turn the matching axle of the gearbox nice and smoothly.

Advertisement

If not, adjust accordingly.

washing machine to fan test gearbox
Source: Sek Austria/YouTube

Add a strip of reflective tape to the exposed end of the gearbox axle. This is to help guide the RPM detector we will add later on.

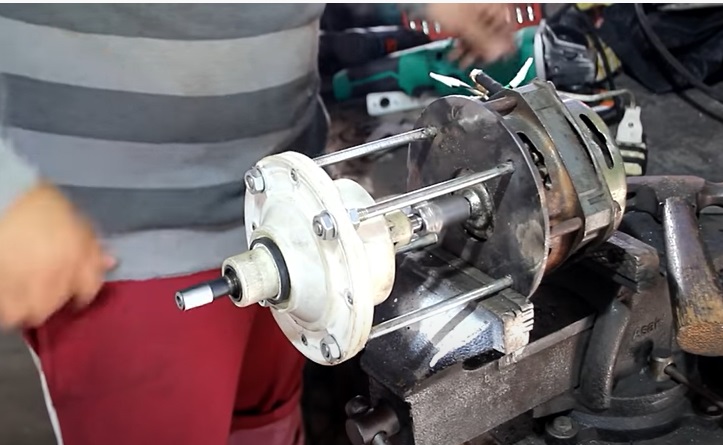

With that done, power up the motor to test the assembly thus far. It should spin nice and fast.

washing machine to fan test
Source: Sek Austria/YouTube

Use an RPM detector to assess the RPM of the machine. In this case, it is around 450, which is pretty good for a ceiling fan of this size.

Step 3: Scavenge the parts needed from an old ceiling fan and finish the piece

With the main motor and gear assembly now more or less complete, we can turn our attention to making the rest of the fan. Either buy some spare parts or take an old, non-functional ceiling fan.

washing machine to fan old fan
Source: Sek Austria/YouTube

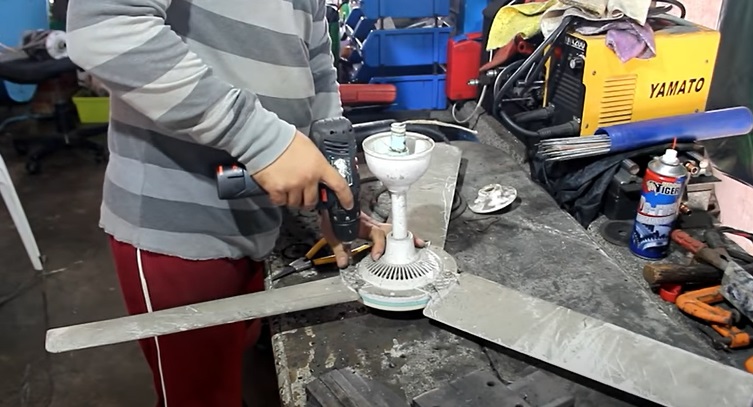

Disassemble the fan to extract its blades.

With that done, fashion a hub mount for the blades from some 4-inch (101mm) steel plate. If you are fortunate enough you may be able to find an existing disc, but if not cut one out.

Advertisement

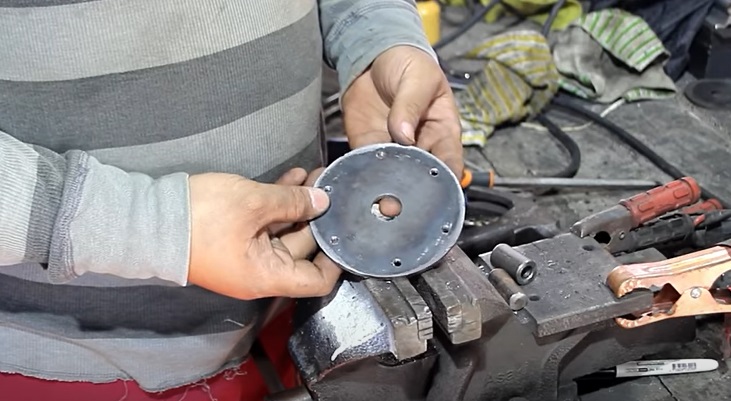

Drill mounting holes around the inner circumference of the disc in order to mount the blades directly to it.

washing machine to fan blade hub
Source: Sek Austria/YouTube

Make another cylinder from a length of steel rod to the same dimensions as the central hole of the hub. Weld the hub to the cylinder, as needed.

The hub should rotate freely and in a single plane, so adjust it by gently tapping it with a hammer where needed. Once complete, use an angle grinder to smooth down any weld points as needed.

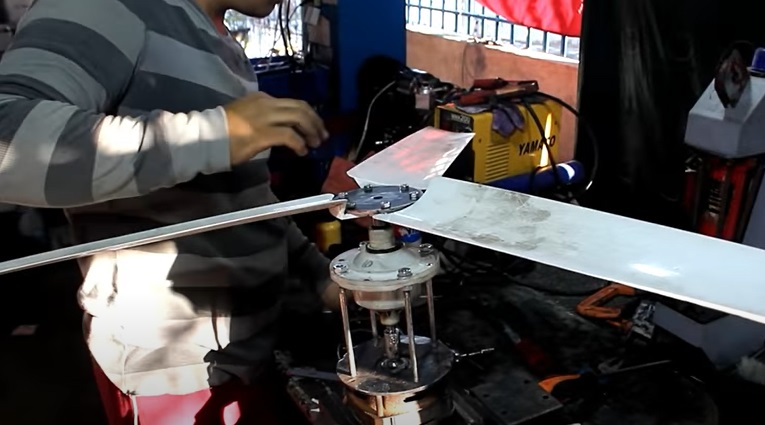

Next, take your old fan blades and mount them to the hub as needed.

washing machine to fan mount blades
Source: Sek Austria/YouTube

With that done, mount and secure the hub to the exposed axle of the gearbox on the main assembly.

washing machine to fan moutn blade hub
Source: Sek Austria/YouTube

Use a washer and bolt to hold the hub in place firmly on the axle -- you don't want it flying off when in use! Once again, power up the motor and test the main fan assembly.

Advertisement

It should move nicely and smoothly. Once you are happy, clean up the parts, like the blades, as needed.

With that done, your new fan is effectively finished. However, you may want to add some aesthetic touches to the piece.

For example, you can either build some form of housing for the main motor and gearbox assembly? Alternatively, and if you are more of a fan of the industrial look, you could keep the gubbins exposed and selectively paint some of them (like the discs).

washing machine to fan paint
Source: Sek Austria/YouTube

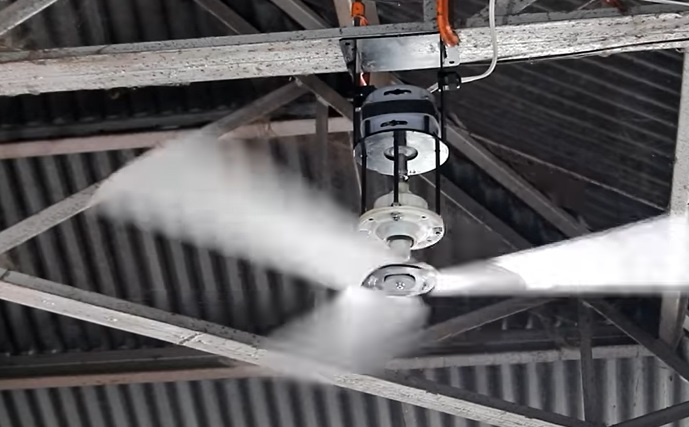

Now all that remains is to fashion some form of ceiling mount and mount the fan into place. Wire up the motor and bask in the cool breeze of your hard work!

if you enjoyed this project, you might enjoy another fan-based project. How about, for example, making a wind turbine to power your new fan?
