Making Your DIY Parcel Drop Off Box

Dropboxes are handy things to have if you're not always home to receive deliveries.

If the video player is not working, you can click on this alternative video link.

If you previously watched our guide on how to build your own DIY garden shed, you may be on the lookout for a new project. Well, how about building a matching dropbox for handling parcel deliveries?

Sound of interest, then follow this handy guide to find out how.

diy dropbox complete
Source: Interesting Engineering/YouTube

As you might have guessed, you are going to need some stuff before you attempt this project for yourself.

Tools and equipment needed

Step 1: Prepare the ground and build the foundations

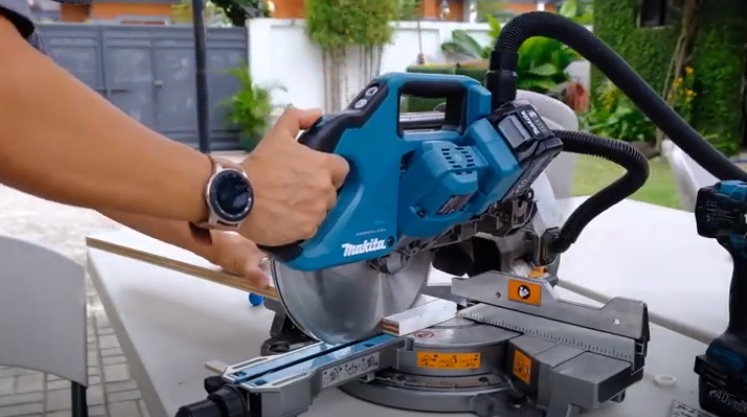

The first step is to grab some scrap wood, measure it to size and cut it down with your table saw. With these pieces, you will be building a frame for the footprint of the drop-off box cement foundation.

diy parcel drop off box wood
Source: Interesting Engineering/YouTube

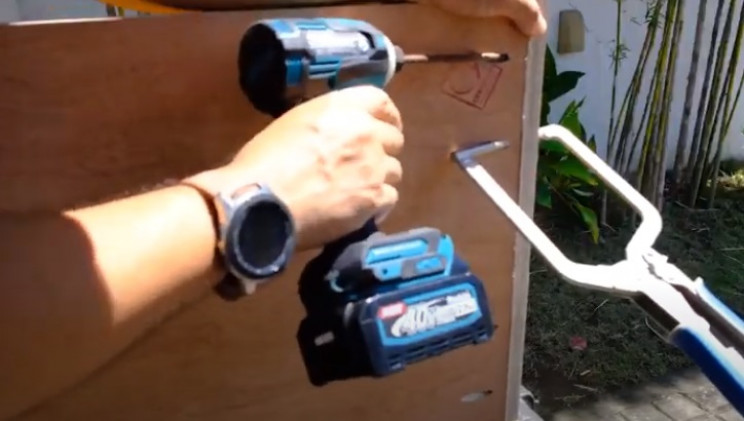

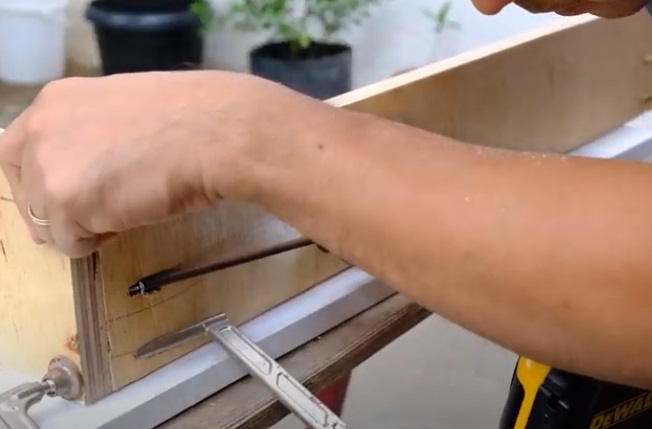

With your bits cut to size, you can then drill some holes using a pocket hole jig, and begin to assemble the frame of the drop-off box. Be sure to use clamps to hold the frame together to help you out.

Advertisement
diy parcel drop-off box assemble
Source: Interesting Engineering/YouTube

With the basic footprint of your drop-off box complete, you can now prepare the ground where you want it to be sited. Remove any turf, and level off the soil.

diy post box foundation
Source: Interesting Engineering/YouTube

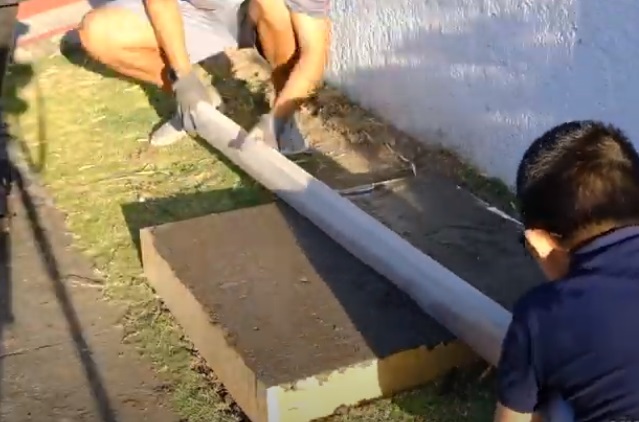

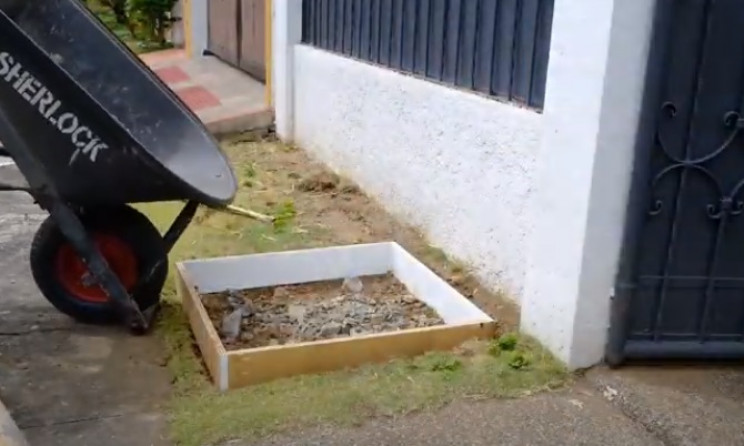

Lay the frame on the ground, ensure it is perfectly level, and then fill the frame with some gravel. Tap it down as much as you can and then pour ready-mixed concrete on top of it. Once the frame is filled with concrete, plane it off flat.

diy postbox flatten concrete
Source: Interesting Engineering/YouTube

Leave the concrete to cure for about 48 hours and then remove the frame to expose the concrete foundation.

Step 2: Mark out the footprint of your drop-off box and make the feet

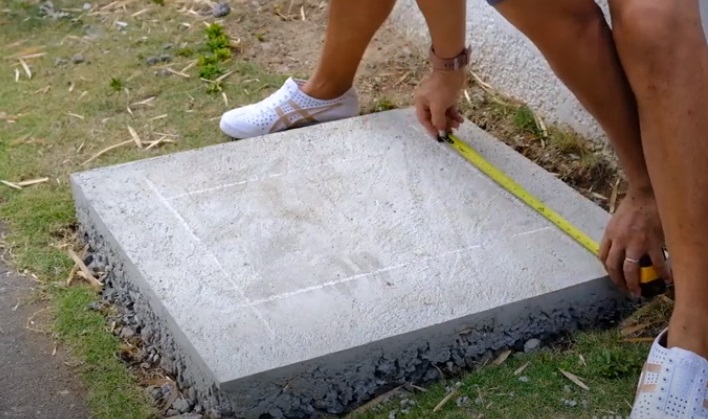

With the concrete now solid enough to build on, mark out the footprint of the drop-box to your liking. Use a tape measure to record the dimensions ready to make the pieces back in your workshop.

Advertisement
diy parcel drop off box dimensions
Source: Interesting Engineering/YouTube

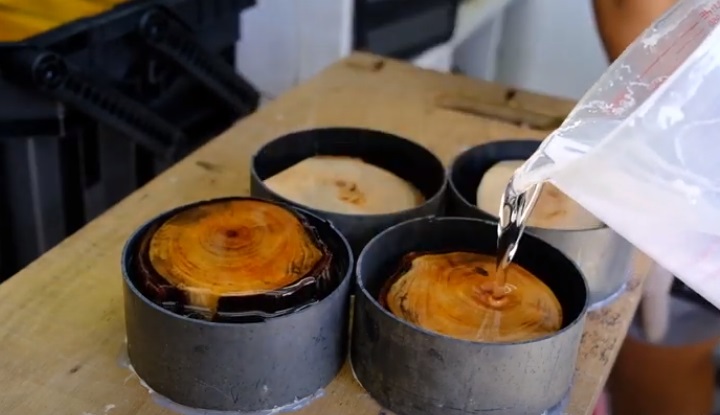

Next, it is time to make the feet. Grab your length of old uPVC pipe and cut out four equally sized disks of it. Then, place a piece of tree slice of the same height into the pipe disk and submerge in some epoxy resin.

Leave to cure, and then sand off the plastic pipe using sandpaper or a belt sander.

diy drop box feet
Source: Interesting Engineering/YouTube

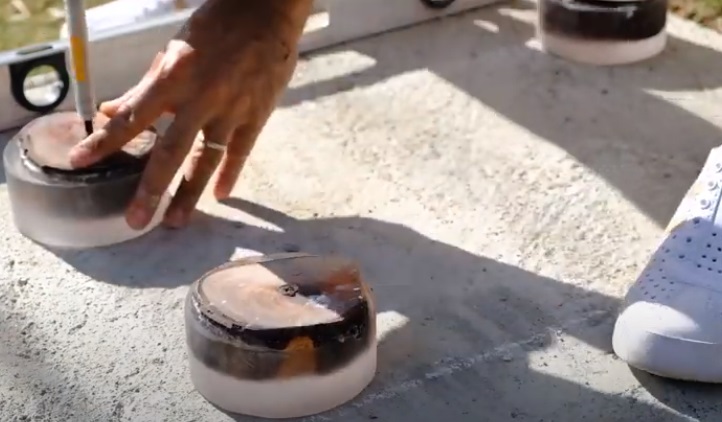

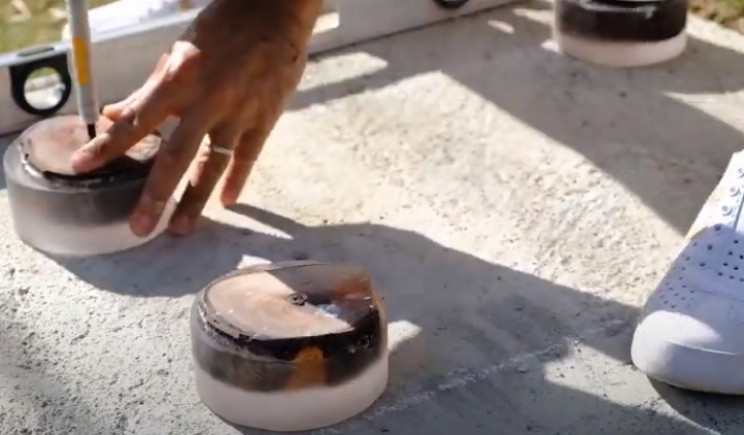

With the feet complete, place them on your concrete foundation where you want them to go. Drill holes through the very center of each foot in preparation for mounting them.

Then, drill matching holes into the concrete foundation and bolt the feet into place.

diy drop box mount feet
Source: Interesting Engineering/YouTube

Step 3: Build the main dropbox

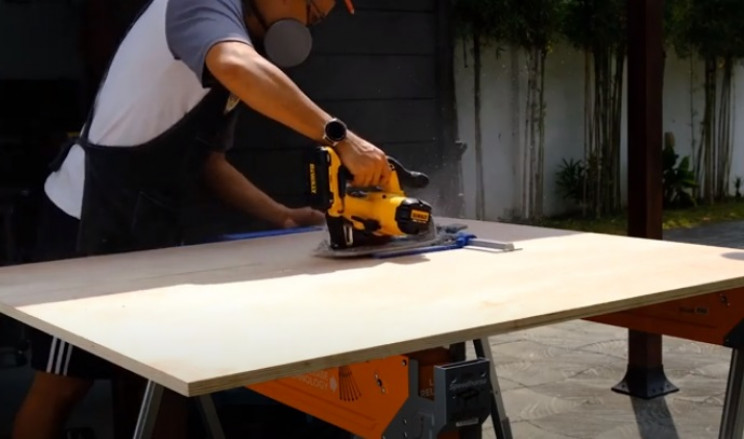

Next, grab your timber sheets of choice, measure, and cut to size using a circular saw or hand saw. As with the frame for the foundation, the dimensions will depend entirely on the size you want the dropbox to be.

Advertisement

For this particular design, be sure to slightly angle the "top" end of two main vertical portions of the box. Also, you will want to include an opening in the front face for adding a door later to access the storage compartment of the dropbox.

diy drop box cut timber to size
Source: Interesting Engineering/YouTube

Once cut, add pocket screw holes, and then begin to assemble the frame, as needed.

diy drop box assemble main box
Source: Interesting Engineering/YouTube

Use a mixture of wood glue and suitable screws to do so.

diy drop box angled top
Note the angled "top" of the box. Source: Interesting Engineering/YouTube

Once assembled, plane off any excess wood to all sides, if needed. Paint the inside, and outside, of the box if you wish.

Step 4: Begin to assemble your drop box's "trap door"

With the main body of the box built, we can now begin to build the internal lift mechanism. Take a length of timber the same width as the box, and mount it to the inside of the "back" of the dropbox as shown below.

Advertisement
diy drop box lift mech
Source: Interesting Engineering/YouTube

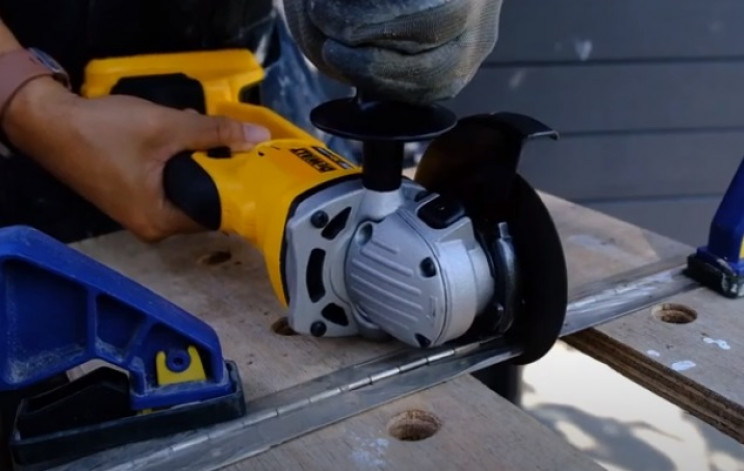

Next, grab your continuous pin hinge length and cut it down to the same width as the box using an angle grinder.

diy drop box hinge cut
Source: Interesting Engineering/YouTube

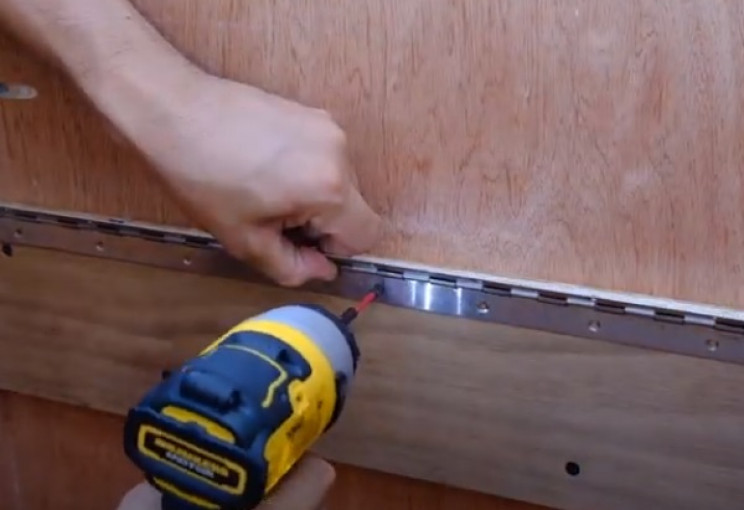

Mount the hinge to the uppermost edge of the timber piece you previously mounted inside the box. This trap door should be able to freely swing downwards under its own weight. This is to all the parcel to fall inside the box when the lid is closed.

diy drop box mount hinge
Source: Interesting Engineering/YouTube

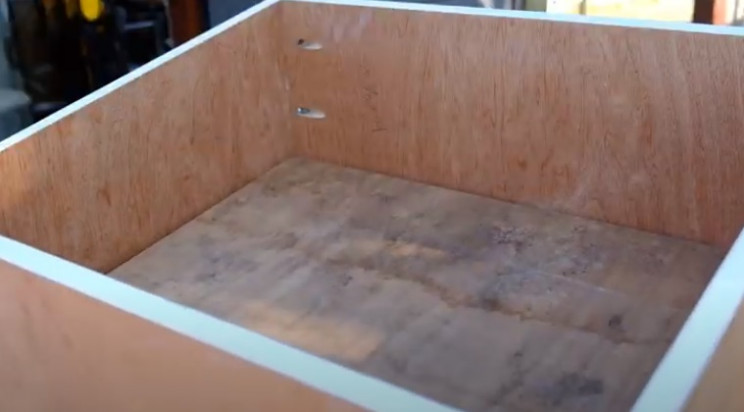

Next, cut another piece of timber sheet to just smaller than the inner dimensions of the box. Attach this piece to the other side of the hinge to form a "trap door".

diy drop box trap door
Source: Interesting Engineering/YouTube

Step 5: Clad the box and add the lid

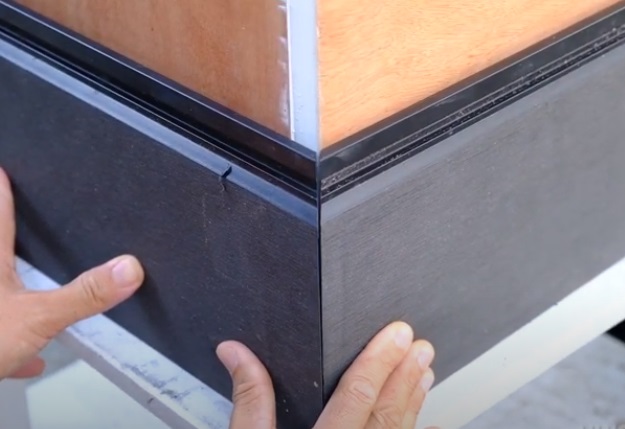

Next, cut your wood cladding to size, cut the edges at 45-degrees, and begin to clad the outside of the box.

diy drop box clad box
Source: Interesting Engineering/YouTube

Continue until all the areas of the box you want to be clad have been covered.

Advertisement

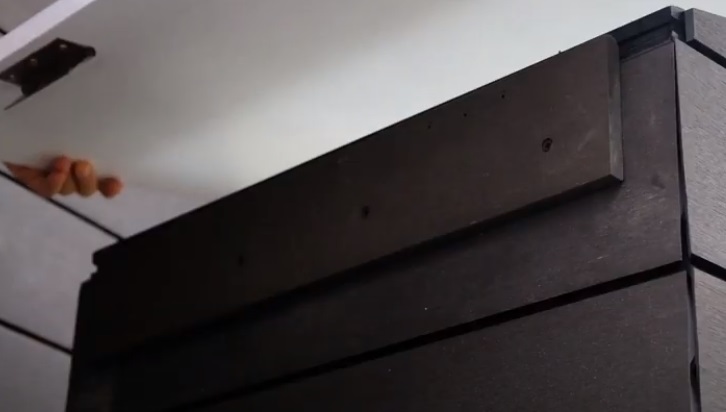

Now take a length of timber and mount it to the rear of the box just below the lip of the rim. This will be used to attach the hinge for the lid in a little bit.

With that complete, next cut another piece of wood sheet to the same dimensions as the angled opening at the top of the box. Add hinges, and mount the lid to the piece of timber you previously attached to the rear of the box.

diy drop box lid
Source: Interesting Engineering/YouTube

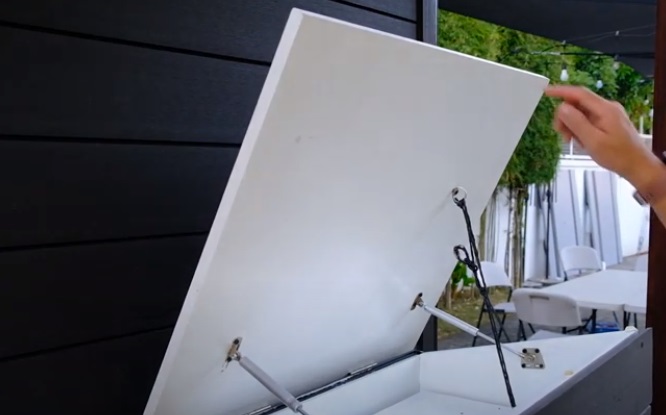

With the lid in place, add a pair of piston hinges on either side of the box and a length of cord long enough to lift the trap door to a horizontal position with the lid open.

diy drop box hinges and trap door
Source: Interesting Engineering/YouTube

Step 6: Build the rear door and add waterproofing to the lid

With that complete, you can now begin to build the rear access door. Cut a piece of sheet timber to the same dimensions as the opening to the front of the dropbox.

Advertisement

Then add a pair of door hinges, and mount the door to the front of the dropbox.

diy drop box rear door
Source: Interesting Engineering/YouTube

With that complete, you can now begin to add waterproofing to the lid. Make small lengths of timber the same dimensions as the outer perimeter of the box. These will be used to secure the roofing felt in place on the lid.

Then cover the lid with roofing felt underlay, and secure it into place using the wood battens you previously cut.

diy drop box lid roof
Source: Interesting Engineering/YouTube

With that complete, trim off any excess roofing felt underlay as needed. Then add lengths of L-bar metal to form flashings to the rear of the lid.

Next cover the entire lid in the roofing felt. Nail into place, and trim off any excess as needed.

diy drop box roofing felt
Source: Interesting Engineering/YouTube

Step 7: Secure your dropbox into place

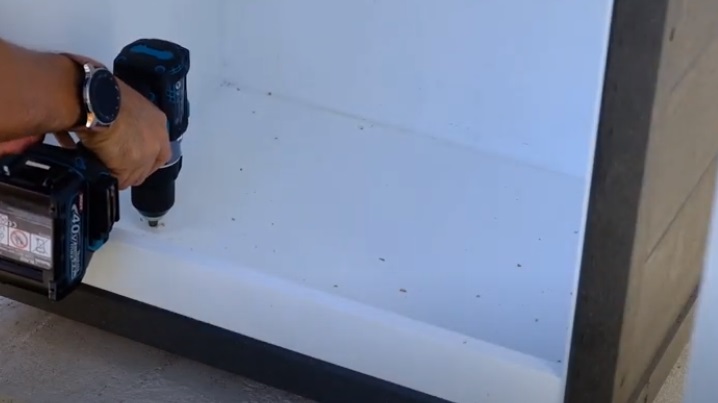

With that complete, you can now maneuver your dropbox into position on top of its feet. Ensure it is in the final position you want, and then mount the box to its feet using long enough screws.

diy dropbox final position
Source: Interesting Engineering/YouTube

Fill or paint over drill holes as needed. With that, your dropbox is basically complete.

You may also want to add a locking mechanism of some kind to the access door, but other than that this build is now complete.

Now all you need to do is order some stuff ready to be freshly delivered to your fancy-pants dropbox. How exciting!

If you have no been bitten by the DIY building bug, why not test your skills on your own DIY dresser
